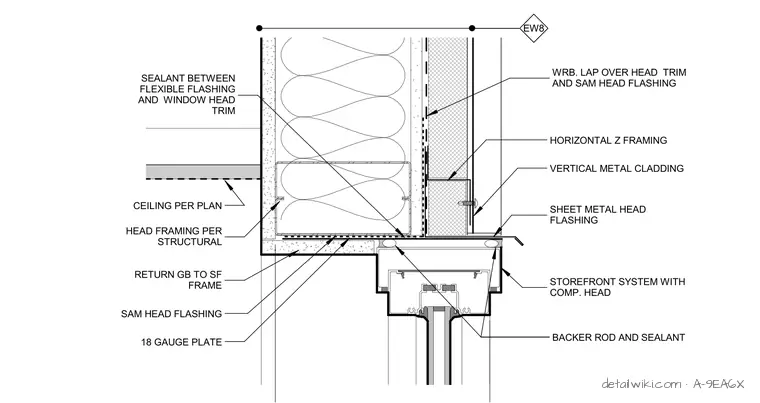

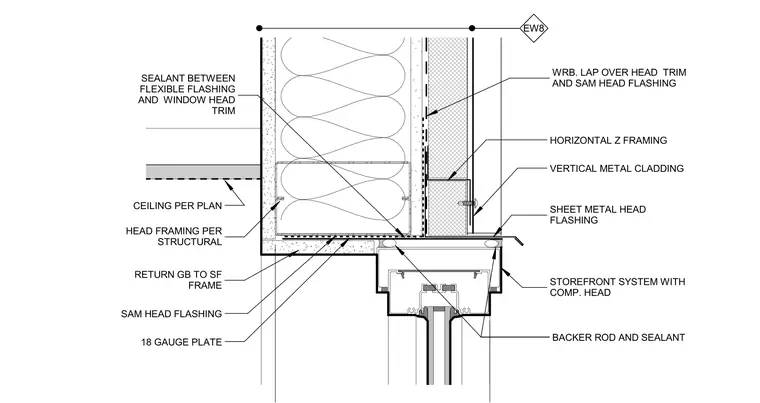

This assembly details a window head integration with a vertical metal cladding exterior wall and storefront system. A weather-resistive barrier laps over the head trim and sam head flashing, supported by horizontal Z-framing and sheet metal head flashing above the storefront. The storefront system includes a composite head with backer rod and sealant at the joint. Interior head framing per structural receives an eighteen gauge plate, flexible flashing with sealant against the window head trim, and a gypsum board return to the storefront frame meeting the ceiling per plan.
SAM HEAD FLASHING WRB. LAP OVER HEAD TRIM AND SAM HEAD FLASHING HORIZONTAL Z FRAMING BACKER ROD AND SEALANT STOREFRONT SYSTEM WITH COMP. HEAD SHEET METAL HEAD FLASHING CEILING PER PLAN VERTICAL METAL CLADDING RETURN GB TO SF FRAME SEALANT BETWEEN FLEXIBLE FLASHING AND WINDOW HEAD TRIM 18 GAUGE PLATE HEAD FRAMING PER STRUCTURAL EW8 EW8
