Architectural · A-9E7D4

Elevator Sill and Threshold Detail at Concrete Slab

Materials

Elements

Walls Doors Floors / Slabs Decks Anchors / Embeds

About this detail

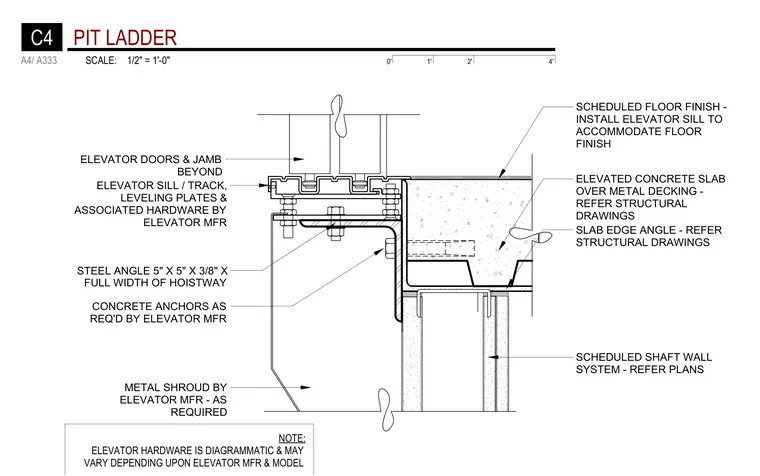

An elevator sill, track, leveling plates, and associated hardware sit above a continuous 5 inches by 5 inches by 3/8-inch steel angle spanning the full width of the hoistway. Concrete anchors secure the steel angle to the slab edge and supporting wall construction. The elevated concrete slab over metal decking terminates at a slab edge angle, aligning with the scheduled floor finish and elevator doors beyond. A metal shroud extends downward from the sill assembly, and a scheduled shaft wall system meets the assembly from below.
