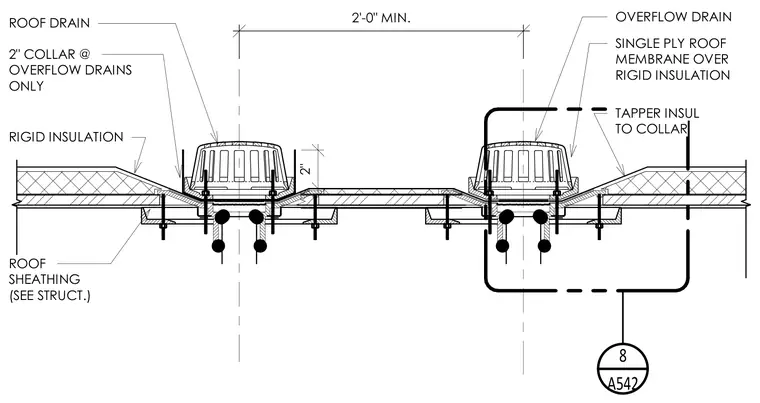

Roof drains and overflow drains are set into the roof assembly with a minimum two-foot spacing between drain centerlines. A single-ply roof membrane runs over rigid insulation, which is tapered toward the drains. A two-inch collar is provided at overflow drains only, projecting two inches above the adjacent roof level. The entire drain assembly sits within roof sheathing sized per structural drawings.
A542 8 2'-0" MIN. 2" OVERFLOW DRAIN TAPPER INSUL TO COLLAR 2" COLLAR @ OVERFLOW DRAINS ONLY ROOF DRAIN RIGID INSULATION SINGLE PLY ROOF MEMBRANE OVER RIGID INSULATION ROOF SHEATHING (SEE STRUCT.)
