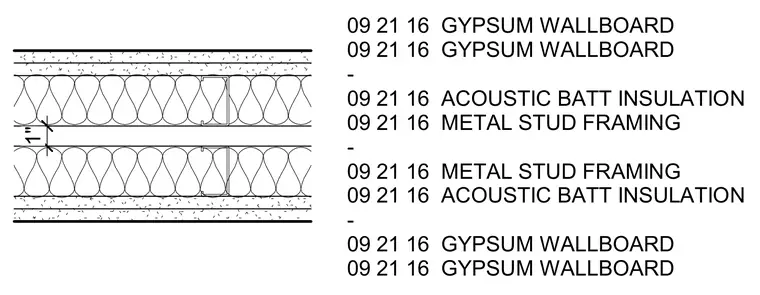

The assembly consists of two parallel runs of cold-formed metal stud framing separated by a one-inch air gap, each filled with acoustic batt insulation. Both sides of the double framing are finished with double layers of gypsum wallboard. The independent stud rows provide acoustic separation between adjacent spaces.
1" 09 21 16 GYPSUM WALLBOARD 09 21 16 GYPSUM WALLBOARD - 09 21 16 ACOUSTIC BATT INSULATION 09 21 16 METAL STUD FRAMING - 09 21 16 METAL STUD FRAMING 09 21 16 ACOUSTIC BATT INSULATION - 09 21 16 GYPSUM WALLBOARD 09 21 16 GYPSUM WALLBOARD
