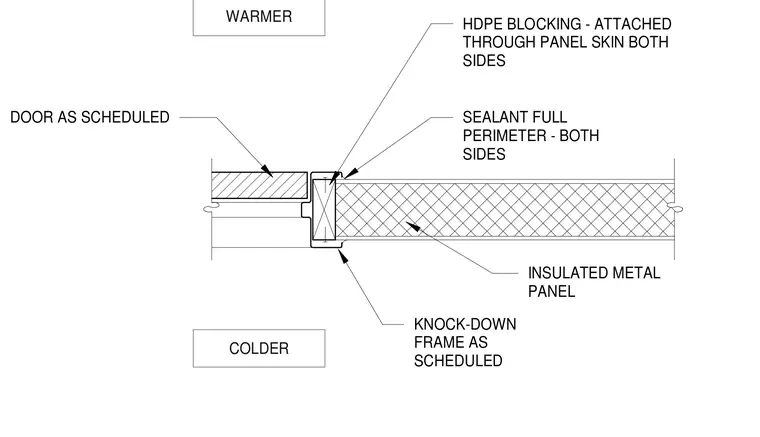

An interior door as scheduled meets an insulated metal panel wall with a knock-down frame as scheduled. High-density polyethylene blocking is attached through the panel skin on both sides to support the frame. Sealant is applied along the full perimeter on both sides to seal the joint.
DOOR AS SCHEDULED INSULATED METAL PANEL HDPE BLOCKING - ATTACHED THROUGH PANEL SKIN BOTH SIDES SEALANT FULL PERIMETER - BOTH SIDES KNOCK-DOWN FRAME AS SCHEDULED WARMER COLDER
