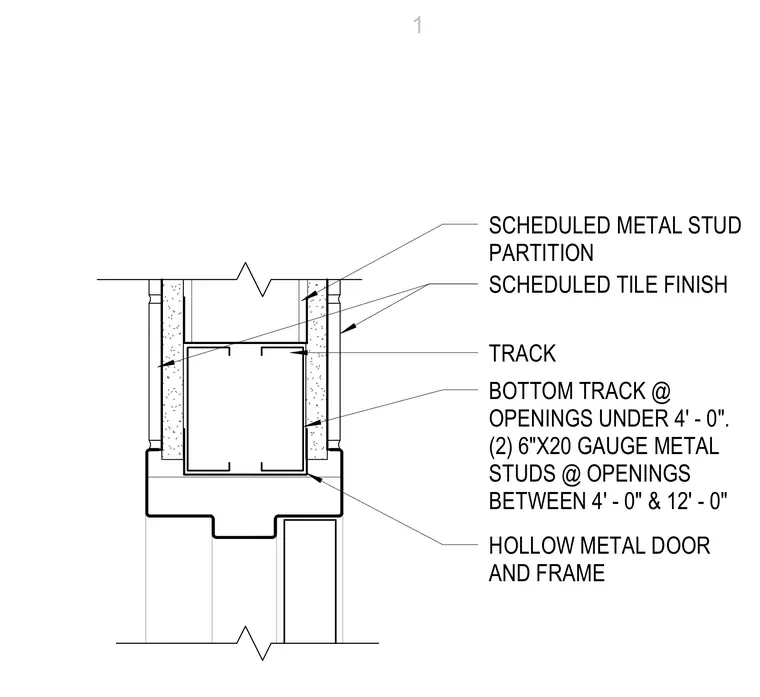

A hollow metal door frame aligns below a track within a scheduled metal stud partition finished with tile. The assembly incorporates a bottom track for openings under four feet, or two six-inch twenty-gauge metal studs for openings between four feet and twelve feet. Scheduled tile finishes apply to the faces of the partition meeting the frame head.
BOTTOM TRACK @ OPENINGS UNDER 4' - 0". (2) 6"X20 GAUGE METAL STUDS @ OPENINGS BETWEEN 4' - 0" & 12' - 0" TRACK SCHEDULED METAL STUD PARTITION HOLLOW METAL DOOR AND FRAME SCHEDULED TILE FINISH 1
