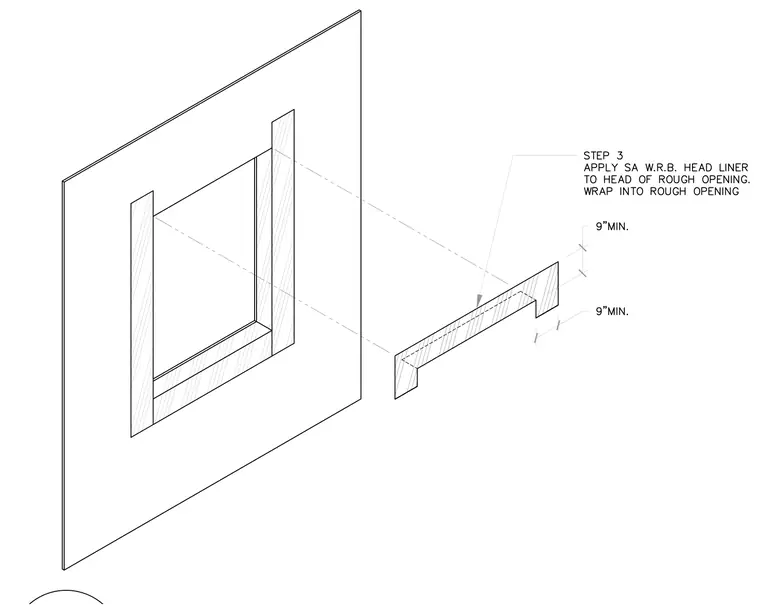

Step three of the non-flanged louver installation requires applying a self-adhered weather-resistant barrier head liner to the head of the rough opening and wrapping it into the opening. The flashing piece maintains a nine-inch minimum dimension along its length and return legs.
