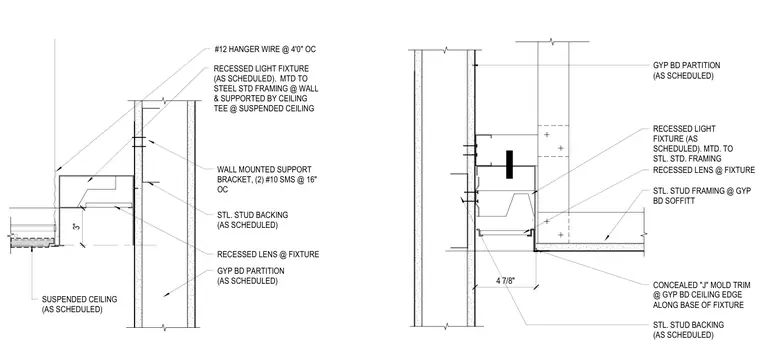

A recessed light fixture mounts directly to steel stud framing at the wall and ties into the ceiling tee of a suspended ceiling system. Number twelve hanger wires spaced at four feet on center support the ceiling assembly. A wall-mounted support bracket fastens to the steel stud backing with two number ten sheet metal screws at sixteen inches on center. A concealed J-mold trim finishes the gypsum board ceiling edge along the base of the fixture. The gypsum board partition features four-and-seven-eighths-inch steel stud backing as scheduled.
GYP BD PARTITION (AS SCHEDULED) SUSPENDED CEILING (AS SCHEDULED) RECESSED LIGHT FIXTURE (AS SCHEDULED). MTD TO STEEL STD FRAMING @ WALL & SUPPORTED BY CEILING TEE @ SUSPENDED CEILING RECESSED LENS @ FIXTURE STL. STUD BACKING (AS SCHEDULED) #12 HANGER WIRE @ 4'0" OC WALL MOUNTED SUPPORT BRACKET, (2) #10 SMS @ 16" OC 3" STL. STUD FRAMING @ GYP BD SOFFITT CONCEALED "J" MOLD TRIM @ GYP BD CEILING EDGE ALONG BASE OF FIXTURE RECESSED LIGHT FIXTURE (AS SCHEDULED). MTD. TO STL. STD. FRAMING RECESSED LENS @ FIXTURE GYP BD PARTITION (AS SCHEDULED) 4 7/8" STL. STUD BACKING (AS SCHEDULED)
