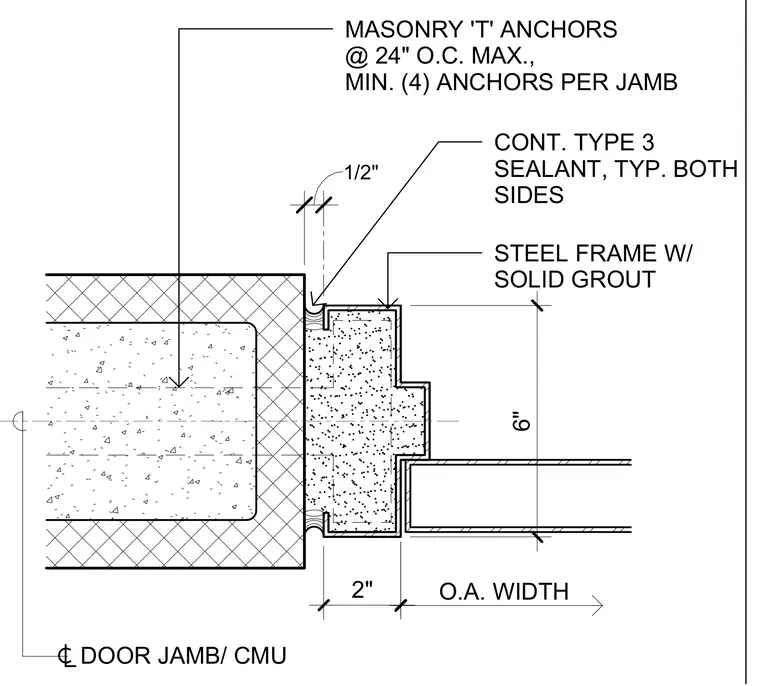

A hollow metal door frame with a six-inch overall width is installed adjacent to a concrete masonry unit wall and filled with solid grout. Masonry T-anchors spaced at a maximum of twenty-four inches on center secure the frame, requiring a minimum of four anchors per jamb. Continuous type three sealant is applied on both sides of the frame interface with a half-inch joint. The steel frame profile provides a two-inch jamb depth connecting to the masonry opening.
CONT. TYPE 3 SEALANT, TYP. BOTH SIDES MASONRY 'T' ANCHORS @ 24" O.C. MAX., MIN. (4) ANCHORS PER JAMB 1/2" STEEL FRAME W/ SOLID GROUT 6" O.A. WIDTH 2" DOOR JAMB/ CMU
