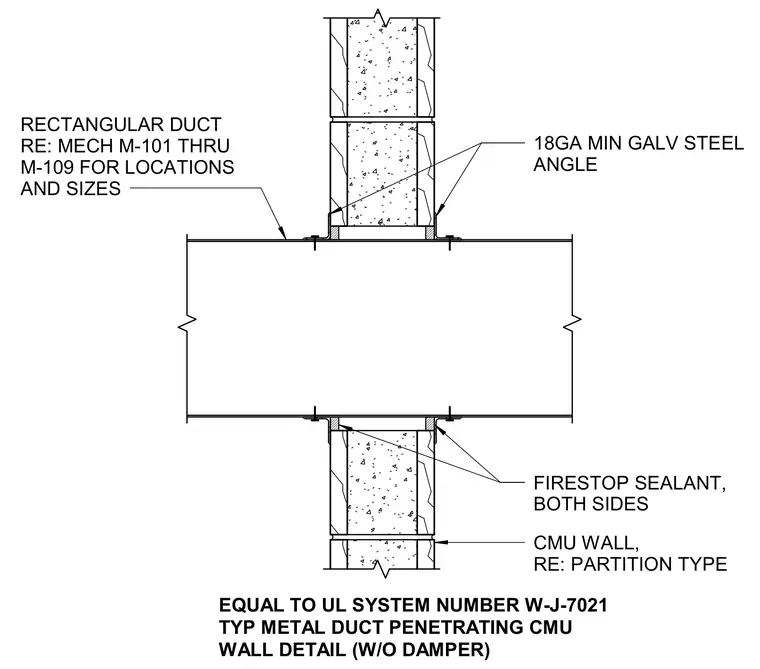

A rectangular metal duct passes through a concrete masonry unit wall without a damper, conforming to Underwriters Laboratories system number W-J-7021. Eighteen-gauge minimum galvanized steel angles frame the penetration on each side. Firestop sealant is applied on both sides of the wall around the duct perimeter.
EQUAL TO UL SYSTEM NUMBER W-J-7021 TYP METAL DUCT PENETRATING CMU WALL DETAIL (W/O DAMPER) CMU WALL, RE: PARTITION TYPE 18GA MIN GALV STEEL ANGLE FIRESTOP SEALANT, BOTH SIDES RECTANGULAR DUCT RE: MECH M-101 THRU M-109 FOR LOCATIONS AND SIZES
