Architectural · A-9DC9M

Trash Enclosure Metal Deck and Aluminum Fascia Detail

Materials

Elements

About this detail

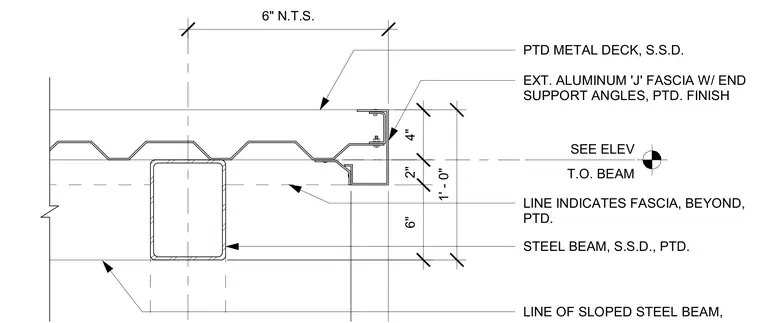

An exterior painted metal deck bears on a structural steel beam with a painted finish. The edge of the assembly terminates with an exterior aluminum J-fascia fastened with end support angles and a painted finish. A line indicates the sloped steel beam beyond the primary section plane. Dimensions establish the six-inch offset to the beam centerline and the one-foot overall fascia height.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
