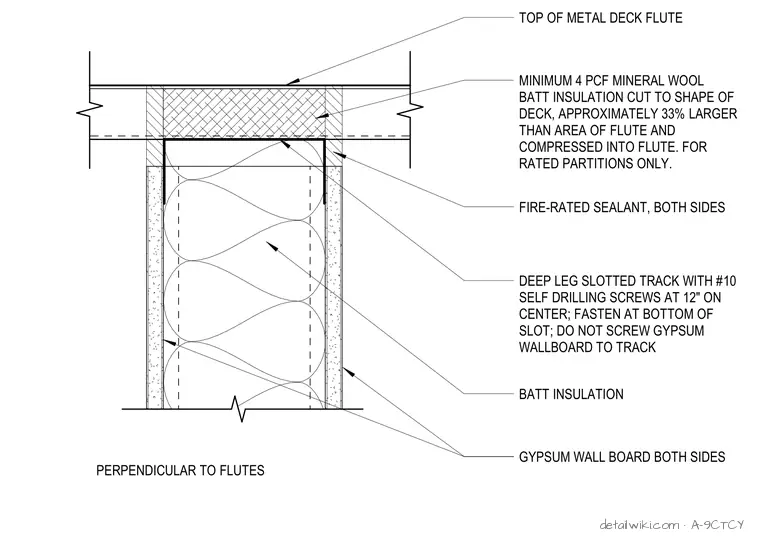

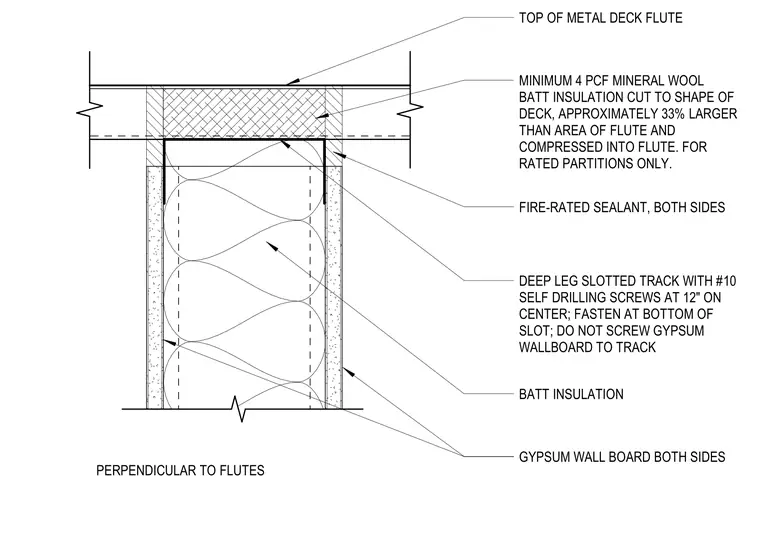

This assembly features a deep-leg slotted track secured to the underside of a metal deck with number ten self-drilling screws spaced at twelve inches on center. The screws are fastened at the bottom of the track slots to allow for vertical deflection, and gypsum wallboard is left unfastened to the track to maintain the slip connection. For fire-rated partitions, the metal deck flute is filled with minimum four pounds per cubic foot mineral wool batt insulation, which is cut approximately thirty-three percent larger than the flute area and compressed into place. Fire-rated sealant is applied to both sides of the wall, extending at least one-quarter inch thick to cover the mineral wool and overlap onto the gypsum wallboard.
Text on the drawing
DEEP LEG SLOTTED TRACK WITH #10 SELF DRILLING SCREWS AT 12" ON CENTER. FASTEN AT BOTTOM OF SLOT. DO NOT SCREW GYPSUM WALL BOARD MINIMUM 1/4" THICKNESS OF SEALANT INSTALLED ON EACH SIDE OF WALL TO COMPLETELY COVER MINERAL WOOL, FLUSH WITH EACH SURFACE OF WALL, OVERLAP ONTO GYPSUM WALLBOARD A CONTINUOUS 16 GAUGE GALVANIZED STEEL PLATE CUT TO A LENGTH TO SPAN FLUTE AND OVERLAP MINIMUM 1 1/2" ONTO ADJACENT VALLEYS AND MINIMUM 4 PCF MINERAL WOOL BATT INSULATION CUT TO SHAPE OF DECK, APPROXIMATELY 33% LARGER THAN AREA OF FLUTE AND COMPRESSED INTO FLUTE. FOR RATED PARTITIONS ONLY. FIRE-RATED SEALANT, BOTH SIDES BATT INSULATION GYPSUM WALL BOARD BOTH SIDES DEEP LEG SLOTTED TRACK WITH #10 SELF DRILLING SCREWS AT 12" ON CENTER; FASTEN AT BOTTOM OF SLOT; DO NOT SCREW GYPSUM WALLBOARD TO TRACK MINIMUM 4 PCF MINERAL WOOL BATT INSULATION CUT TO SHAPE OF DECK, APPROXIMATELY 33% LARGER THAN AREA OF FLUTE AND COMPRESSED INTO FLUTE. FOR RATED PARTITIONS ONLY. FIRE-RATED SEALANT, BOTH SIDES PERPENDICULAR TO FLUTES TOP OF METAL DECK FLUTE
