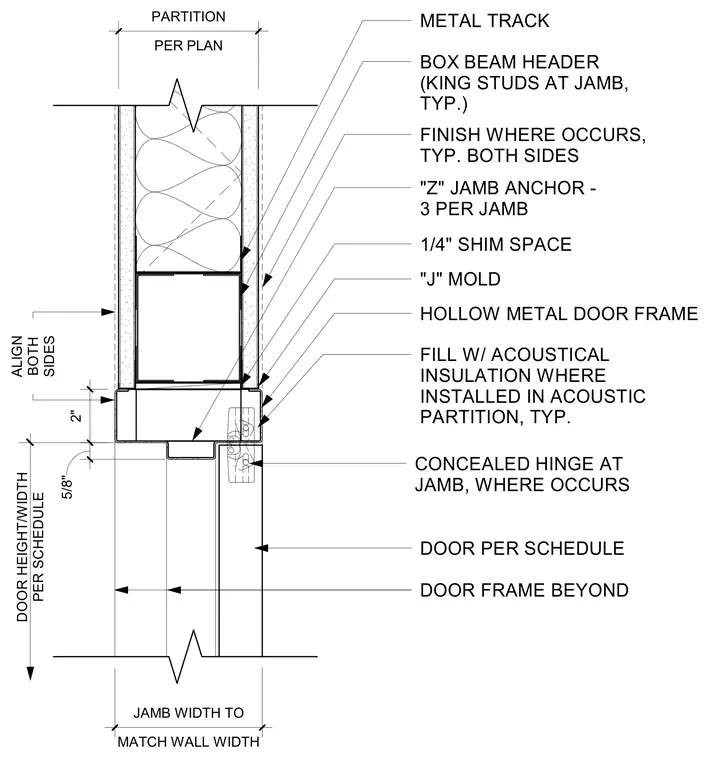

A flush hollow metal door frame is installed in an interior partition framing assembly. The jamb width matches the wall width, featuring king studs at the jamb and a box beam header. Three Z-jamb anchors secure each side of the frame with a one-quarter-inch shim space. A J-mold trim piece finishes the gypsum board edge, and acoustical insulation fills the cavity where required for acoustic partitions. A concealed hinge connects the door per schedule to the frame.
5/8" 2" PER PLAN PARTITION MATCH WALL WIDTH JAMB WIDTH TO DOOR HEIGHT/WIDTH PER SCHEDULE METAL TRACK BOX BEAM HEADER (KING STUDS AT JAMB, TYP.) FINISH WHERE OCCURS, TYP. BOTH SIDES "Z" JAMB ANCHOR - 3 PER JAMB HOLLOW METAL DOOR FRAME FILL W/ ACOUSTICAL INSULATION WHERE INSTALLED IN ACOUSTIC PARTITION, TYP. DOOR PER SCHEDULE DOOR FRAME BEYOND ALIGN BOTH SIDES "J" MOLD CONCEALED HINGE AT JAMB, WHERE OCCURS 1/4" SHIM SPACE
