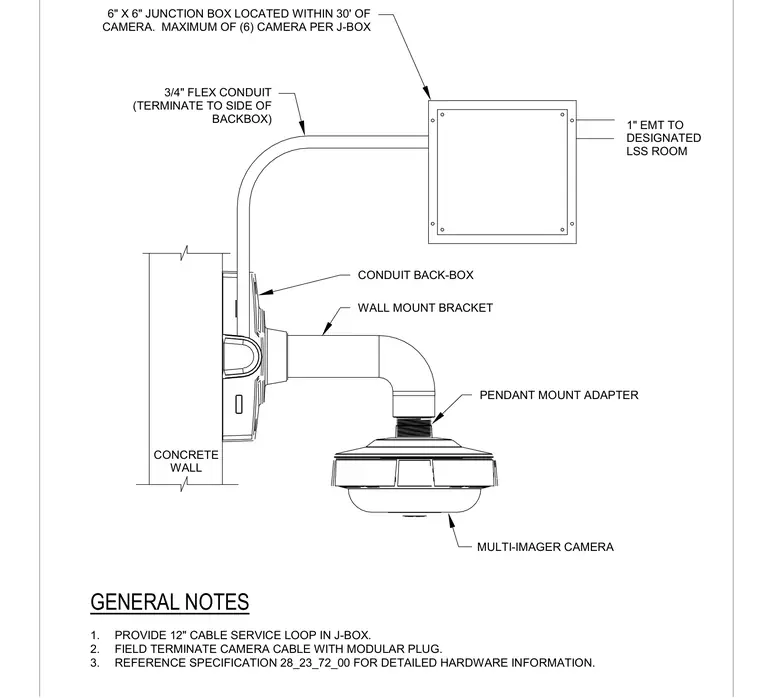

A multi-imager camera is mounted to a concrete wall using a wall mount bracket and pendant mount adapter attached to a conduit back-box. A three-quarter-inch flexible conduit connects the back-box to a six-inch by six-inch junction box located within thirty feet of the camera. One-inch electrical metallic tubing routes from the junction box to the designated low voltage security system room. A twelve-inch cable service loop is provided within the junction box and camera cables are field terminated with a modular plug.
CONCRETE WALL MULTI-IMAGER CAMERA PENDANT MOUNT ADAPTER WALL MOUNT BRACKET CONDUIT BACK-BOX 1" EMT TO DESIGNATED LSS ROOM 3/4" FLEX CONDUIT (TERMINATE TO SIDE OF BACKBOX) 6" X 6" JUNCTION BOX LOCATED WITHIN 30' OF CAMERA. MAXIMUM OF (6) CAMERA PER J-BOX 1. PROVIDE 12" CABLE SERVICE LOOP IN J-BOX. 2. FIELD TERMINATE CAMERA CABLE WITH MODULAR PLUG. 3. REFERENCE SPECIFICATION 28_23_72_00 FOR DETAILED HARDWARE INFORMATION. GENERAL NOTES
