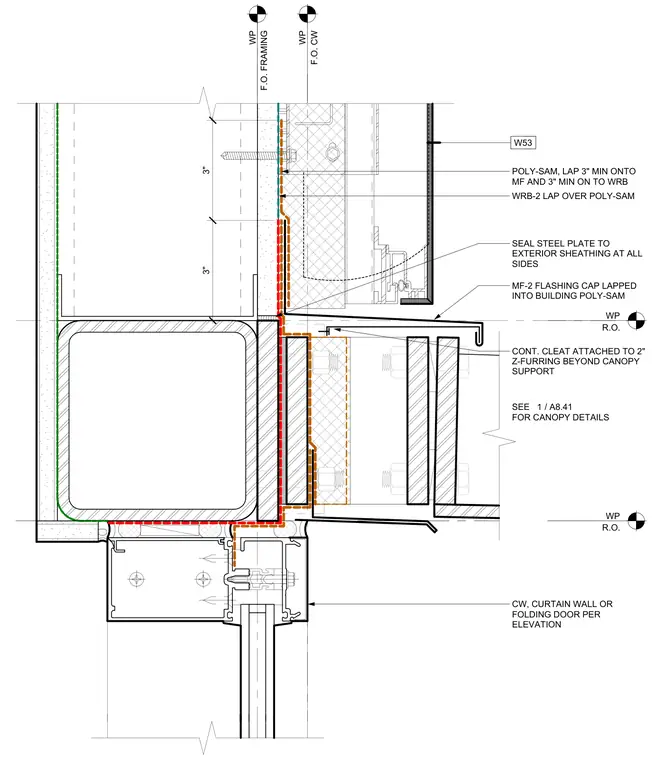

An exterior canopy connection details the transition from a building structure to a curtain wall or folding door assembly. An MF-2 flashing cap laps into the building poly-sam waterproof membrane, secured with a continuous cleat attached to two-inch Z-furring beyond the canopy support. A weather-resistive barrier laps over the poly-sam membrane with a three-inch minimum overlap, while a steel plate is sealed to the exterior sheathing on all sides. Waterproofing workpoints establish framing and rough opening alignments for the curtain wall.
MF-2 FLASHING CAP LAPPED INTO BUILDING POLY-SAM CONT. CLEAT ATTACHED TO 2" Z-FURRING BEYOND CANOPY SUPPORT WP F.O. FRAMING WP F.O. CW WP R.O. SEE FOR CANOPY DETAILS / 1 A8.41 W53 WRB-2 LAP OVER POLY-SAM CW, CURTAIN WALL OR FOLDING DOOR PER ELEVATION POLY-SAM, LAP 3" MIN ONTO MF AND 3" MIN ON TO WRB WP R.O. 3" 3" SEAL STEEL PLATE TO EXTERIOR SHEATHING AT ALL SIDES
