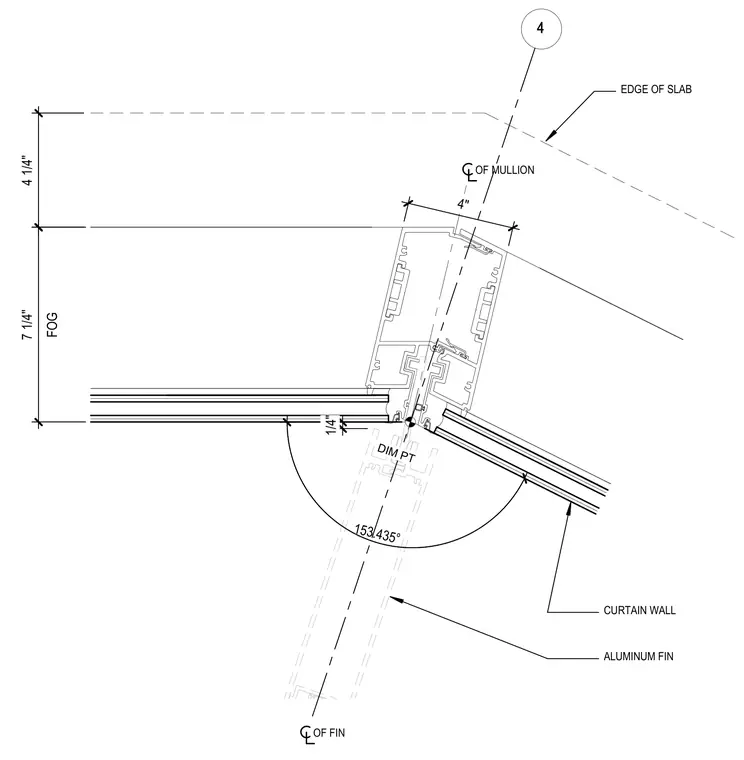

This plan detail shows an angled curtain wall corner with a centerline mullion offset four inches from the face of glass. An exterior aluminum fin aligns with the center of the mullion at a 153.435 degree angle. The dimension from the edge of the slab to the face of glass is seven and one-quarter inches, with an additional four and one-quarter inches to the structural slab edge. The assembly incorporates framing members set relative to the dimension point at the exterior corner.
4 CURTAIN WALL DIM PT OF MULLION OF FIN 4 " EDGE OF SLAB F O G 7 1 / 4 " 1 / 4 " 1 5 3 . 4 3 5 ° 4 1 / 4 " ALUMINUM FIN
