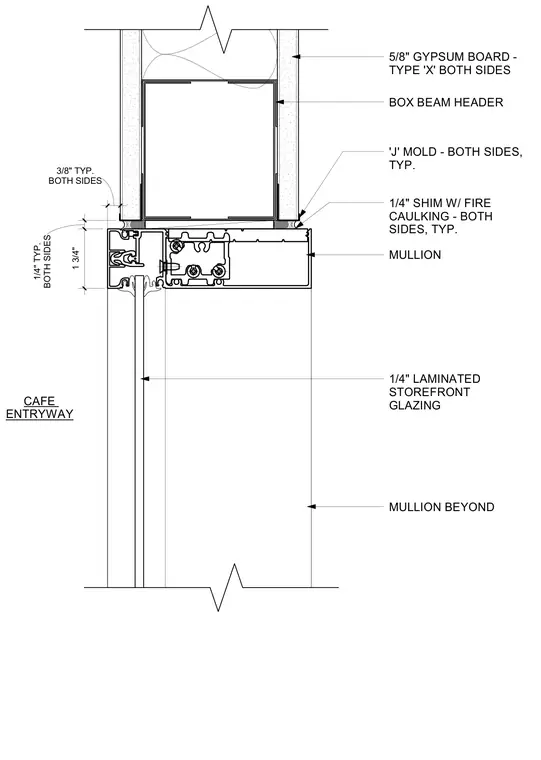

An interior storefront head assembly connects beneath a box beam header framed out with five-eighths inch Type X gypsum board on both sides. J-moldings finish the drywall edges where they meet the aluminum storefront framing. A one-quarter inch shim with fire caulking is detailed on both sides at the head interface. The storefront system incorporates a mullion and one-quarter inch laminated storefront glazing.
1 3/4" BOTH SIDES 1/4" TYP. 5/8" GYPSUM BOARD - TYPE 'X' BOTH SIDES BOX BEAM HEADER 'J' MOLD - BOTH SIDES, TYP. MULLION 1/4" LAMINATED STOREFRONT GLAZING MULLION BEYOND BOTH SIDES 3/8" TYP. CAFE ENTRYWAY 1/4" SHIM W/ FIRE CAULKING - BOTH SIDES, TYP.
