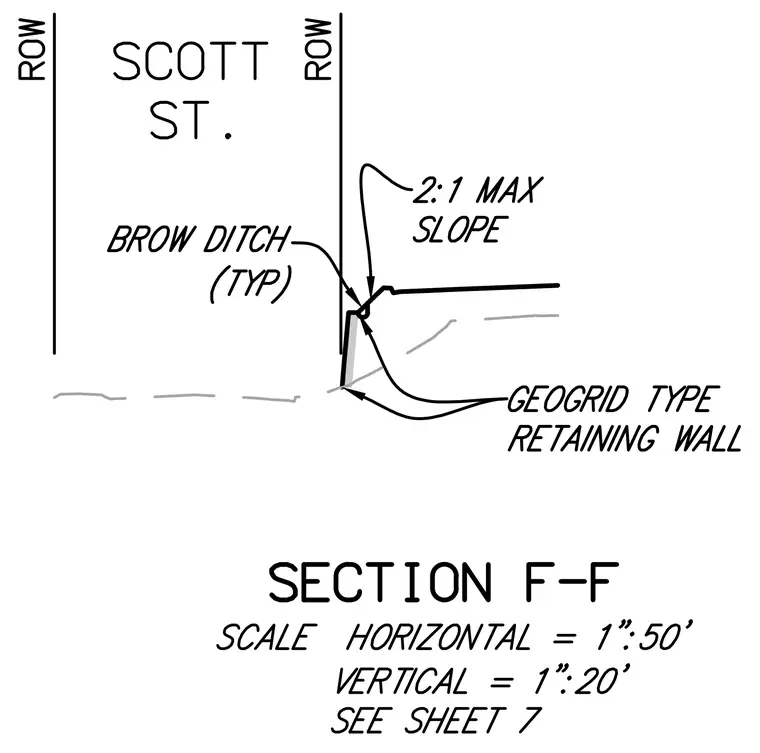

A brow ditch with a typical designation is positioned adjacent to a geogrid type retaining wall along the Scott Street right-of-way boundary. The retained slope is graded at a two-to-one maximum slope. Additional grading and subsurface lines extend behind the retaining structure.
