Three-foot by three-foot paver pads surround the perimeter of rooftop equipment as typical at all equipment curbs. A maximum one-foot gap is maintained between the equipment curb and the surrounding paver pads. The equipment curb is sized and detailed per the specified roof system.

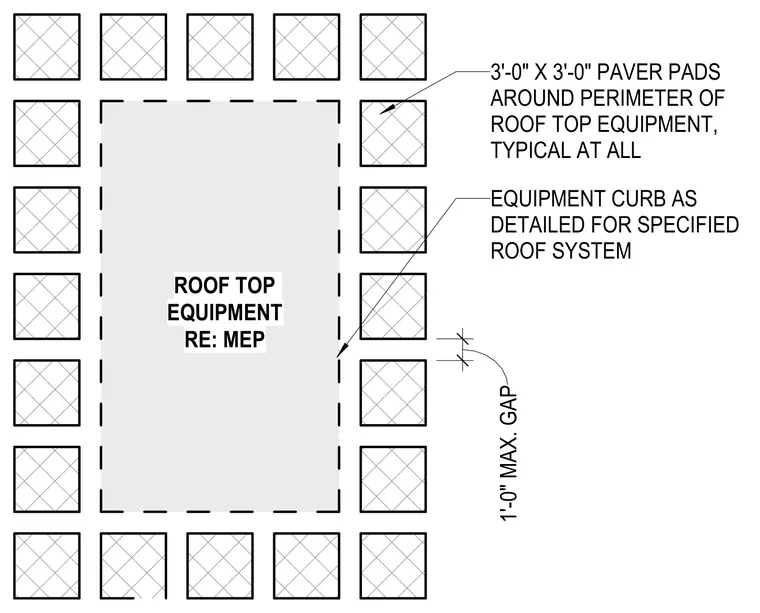

ROOF TOP EQUIPMENT RE: MEP 3'-0" X 3'-0" PAVER PADS AROUND PERIMETER OF ROOF TOP EQUIPMENT, TYPICAL AT ALL EQUIPMENT CURB AS DETAILED FOR SPECIFIED ROOF SYSTEM 1'-0" MAX. GAP
