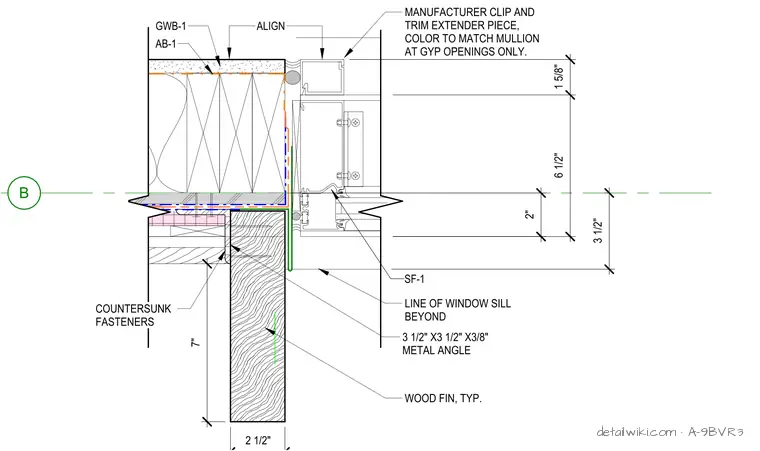

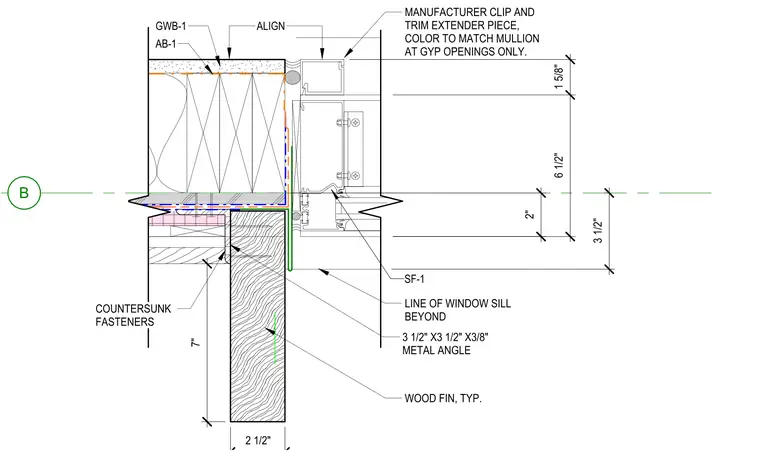

This plan detail shows a window jamb condition where a metal frame (SF-1) meets a gypsum wallboard (GWB-1) partition. The assembly includes a manufacturer clip and trim extender piece, which is color-matched to the mullion at gypsum openings. A three and one-half inch by one-half inch by three-eighths inch metal angle is installed at the jamb. A two and one-half inch wide wood finish piece is secured with countersunk fasteners. The window sill line is indicated beyond the primary jamb plane.
