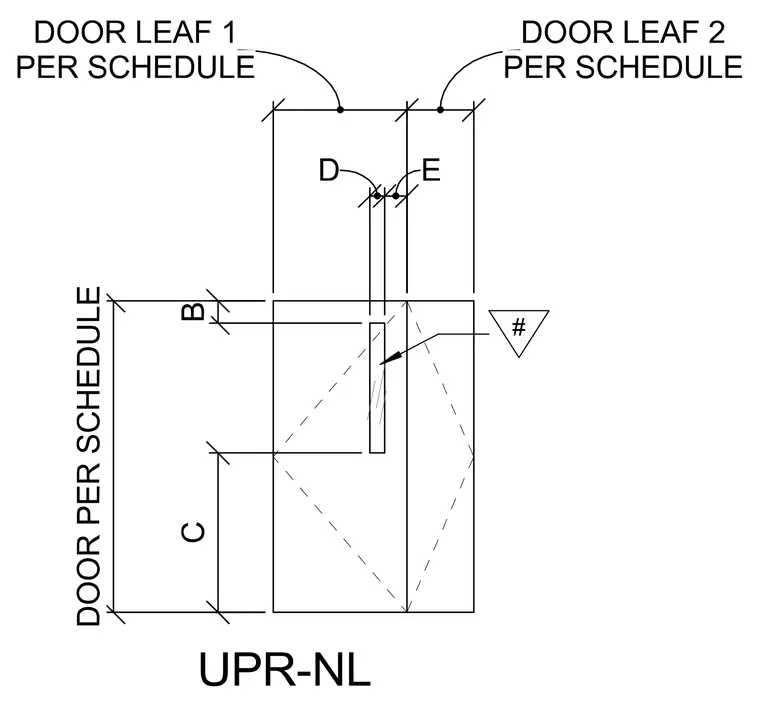

This elevation details a pair of doors with door leaves sized per schedule, featuring a narrow vertical vision panel centered between the leaves. Dimensional variables B and C establish the vertical positioning and height of the glazing cutout, while dimensions D and E define the clearance and stile widths adjacent to the glass. A detail reference marker points to the vision light assembly, and overall width is dimensioned across both door leaves.
