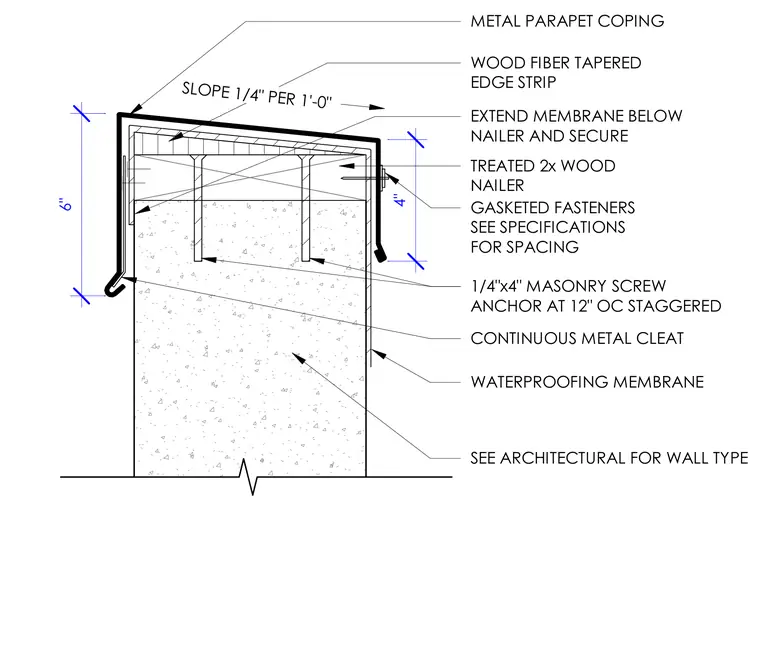

A metal parapet coping caps the masonry wall atop a treated two-by wood nailer with a wood fiber tapered edge strip providing a slope of one-quarter inch per one foot. A waterproofing membrane extends below the nailer and is secured beneath the coping. The coping is fastened with gasketed fasteners spaced per specifications and latched to a continuous metal cleat. One-quarter-inch by four-inch masonry screw anchors are embedded into the masonry wall at twelve inches on center staggered. The wall assembly transitions below with the wall type sized per architectural plans.
TREATED 2x WOOD NAILER WOOD FIBER TAPERED EDGE STRIP EXTEND MEMBRANE BELOW NAILER AND SECURE METAL PARAPET COPING CONTINUOUS METAL CLEAT GASKETED FASTENERS SEE SPECIFICATIONS FOR SPACING 1/4"x4" MASONRY SCREW ANCHOR AT 12" OC STAGGERED WATERPROOFING MEMBRANE SLOPE 1/4" PER 1'-0" 6" 4" SEE ARCHITECTURAL FOR WALL TYPE — C
