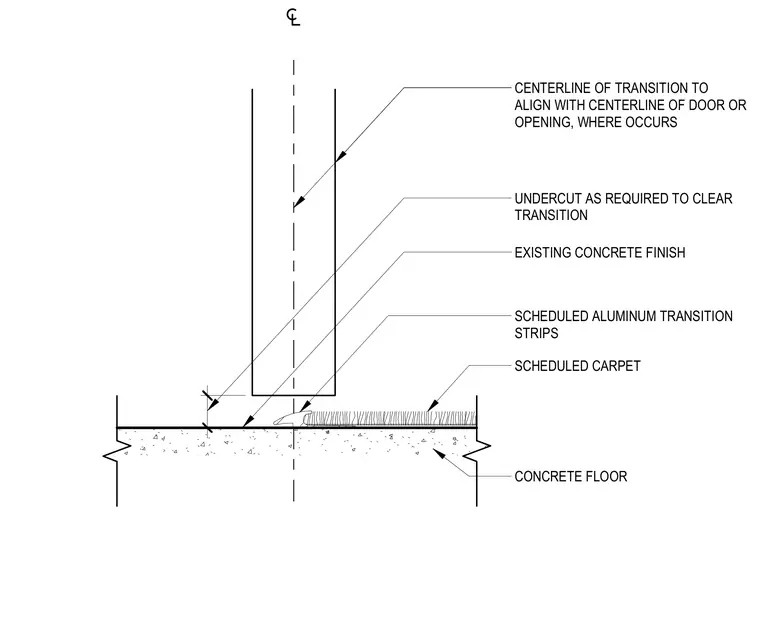

An aluminum transition strip bridges the joint between an existing concrete floor and scheduled carpet finish. The carpet is undercut as required to clear the transition assembly. The centerline of the transition aligns with the centerline of any corresponding door or opening where it occurs.
EXISTING CONCRETE FINISH SCHEDULED ALUMINUM TRANSITION STRIPS SCHEDULED CARPET UNDERCUT AS REQUIRED TO CLEAR TRANSITION CENTERLINE OF TRANSITION TO ALIGN WITH CENTERLINE OF DOOR OR OPENING, WHERE OCCURS CONCRETE FLOOR
