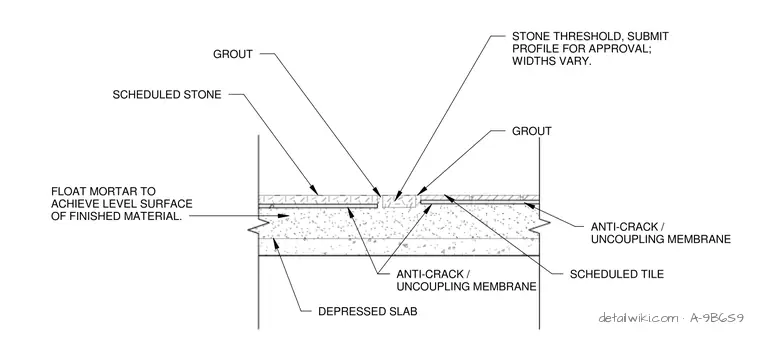

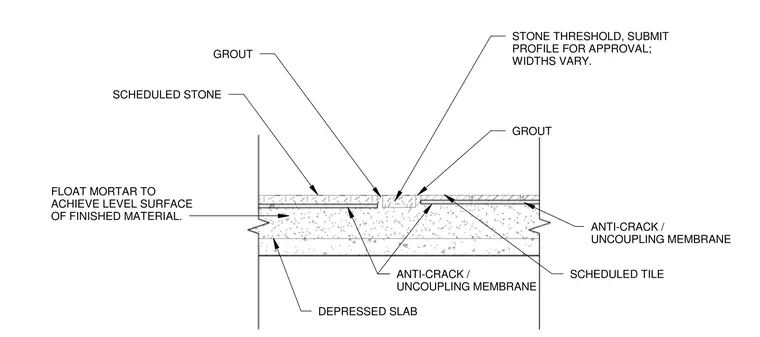

A-9B6S9 — Depressed Stone to Depressed Tile

Architectural · A-9B6S9

Depressed Stone to Depressed Tile

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A-625
Discipline: Architectural

Materials

Concrete Masonry / CMU Membrane / Roofing Stone

Elements

Floors / Slabs Waterproofing / Flashing

Text on the drawing

SCHEDULED STONE STONE THRESHOLD, SUBMIT PROFILE FOR APPROVAL; WIDTHS VARY. GROUT SCHEDULED TILE ANTI-CRACK / UNCOUPLING MEMBRANE DEPRESSED SLAB ANTI-CRACK / UNCOUPLING MEMBRANE FLOAT MORTAR TO ACHIEVE LEVEL SURFACE OF FINISHED MATERIAL. GROUT
