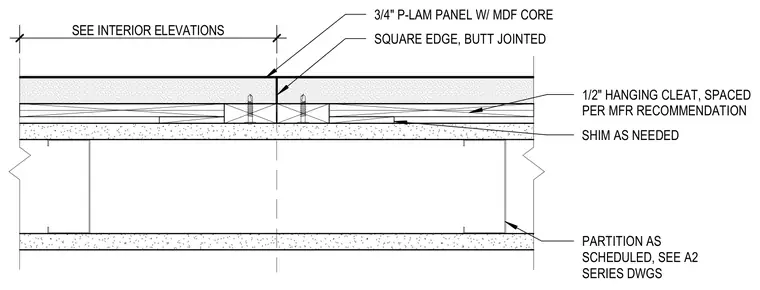

Three-quarter-inch plastic laminate panels with a medium-density fiberboard core are installed with square edges in a butt joint configuration. One-half-inch hanging cleats are spaced per manufacturer recommendations and shimmed as needed against the partition as scheduled.
PARTITION AS SCHEDULED, SEE A2 SERIES DWGS 3/4" P-LAM PANEL W/ MDF CORE SQUARE EDGE, BUTT JOINTED 1/2" HANGING CLEAT, SPACED PER MFR RECOMMENDATION SHIM AS NEEDED SEE INTERIOR ELEVATIONS
