The steel roof truss top chord extends through the exterior wall while the bottom flange terminates at the exterior wall framing. Outrigger steel features welded connections, supporting an extended top flange for fascia support. The assembly incorporates a four-inch metal stud framing with batt insulation and gypsum wall board sealed at the beam penetration. The roofing membrane wraps over the vertical insulation and behind the exterior wall finish, while the air barrier wraps over the roof insulation and rigid board. Metal panel MP-3 is aligned with interior acoustical deck panels to ensure continuous seam alignment. An elastomeric transition gasket and a three-quarter-inch sealant joint seal the curtain wall header interface.

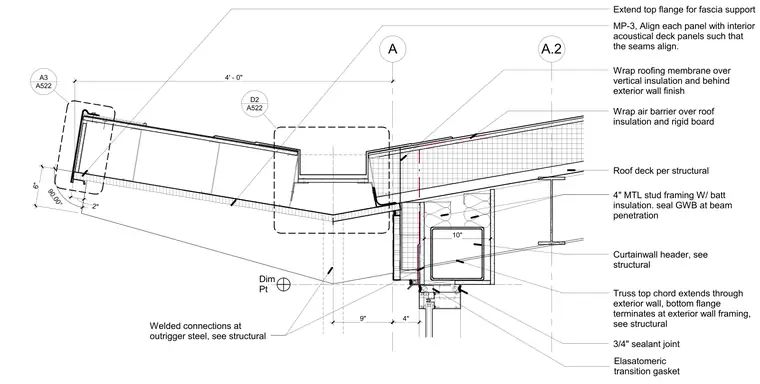

A A.2 Curtainwall header, see structural Truss top chord extends through exterior wall, bottom flange terminates at exterior wall framing, see structural 4" MTL stud framing W/ batt insulation. seal GWB at beam penetration Roof deck per structural 9" Welded connections at outrigger steel, see structural 3/4" sealant joint Dim Pt 90.00° 2" 4' - 0" 6" 4" Wrap roofing membrane over vertical insulation and behind exterior wall finish Wrap air barrier over roof insulation and rigid board A522 D2 MP-3, Align each panel with interior acoustical deck panels such that the seams align. Extend top flange for fascia support A522 A3 Elasatomeric transition gasket 10"
