About this detail

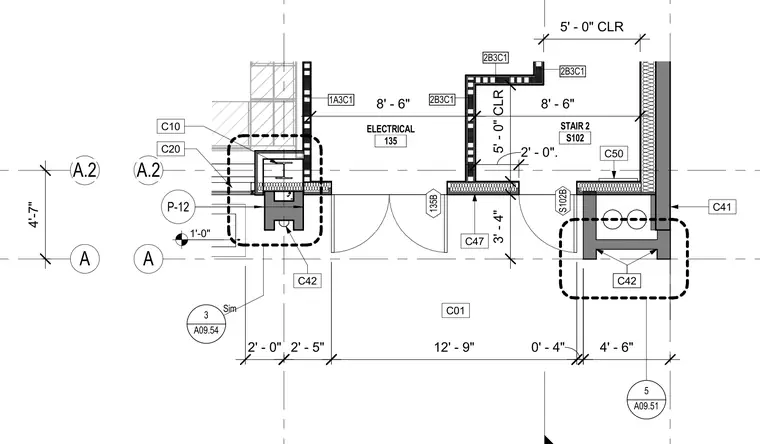

Layout between Electrical Room 135 and Stair 2 features a 5'-0" clear dimensioned pathway and designated wall assembly tags including 1A3C1 and 2B3C1. Structural steel columns and concrete wall construction are detailed with coordinate tags C10, C20, C41, C42, C47, and C50. Dimensions establish clearances, wall thicknesses, and room spacings across grid lines A and A.2.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
