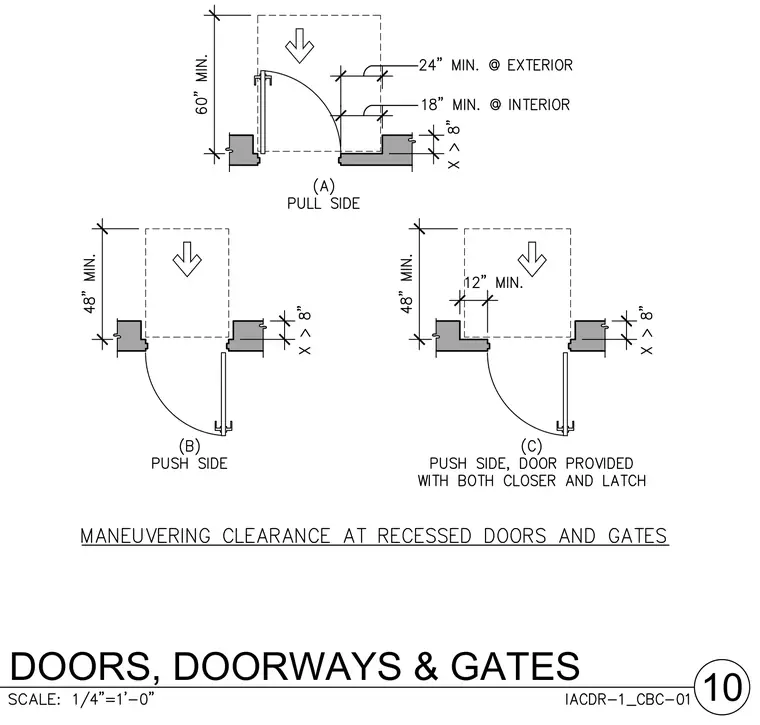

Accessible maneuvering clearances for recessed doors and gates require a minimum depth of sixty inches on the pull side, with twenty-four inches minimum at the exterior latch side or eighteen inches minimum at the interior latch side. The push side requires a minimum depth of forty-eight inches without a closer and latch, or forty-eight inches minimum depth with a twelve-inch latch side clearance when equipped with both closer and latch.
