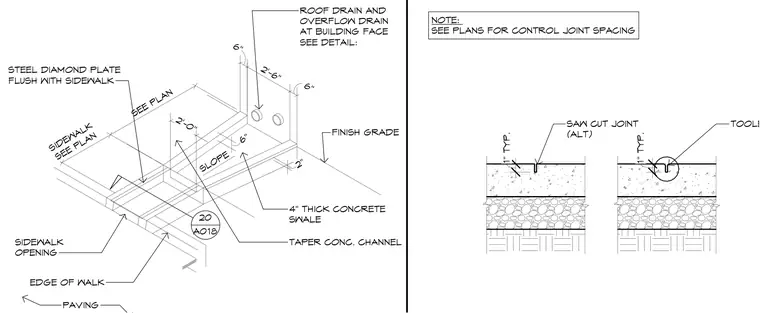

A concrete channel and roof drain outlet assembly integrates at the building face with a four-inch thick concrete swale and a tapered concrete channel sloping toward a sidewalk opening. A steel diamond plate is installed flush with the sidewalk adjacent to the opening. Saw-cut joints and tooled joints are provided in the concrete paving at typical spacings per the architectural plans.
1" TYP. SAW CUT JOINT (ALT) TOOLED JOINT NOTE: SEE PLANS FOR CONTROL JOINT SPACING 1" TYP. SEE PLAN SIDEWALK SEE PLAN 2'-6" 6" 6" 6" 2" 2'-0" ROOF DRAIN AND OVERFLOW DRAIN AT BUILDING FACE SEE DETAIL: 4" THICK CONCRETE SWALE EDGE OF WALK PAVING STEEL DIAMOND PLATE FLUSH WITH SIDEWALK TAPER CONC. CHANNEL SIDEWALK OPENING FINISH GRADE SLOPE 20 A018
