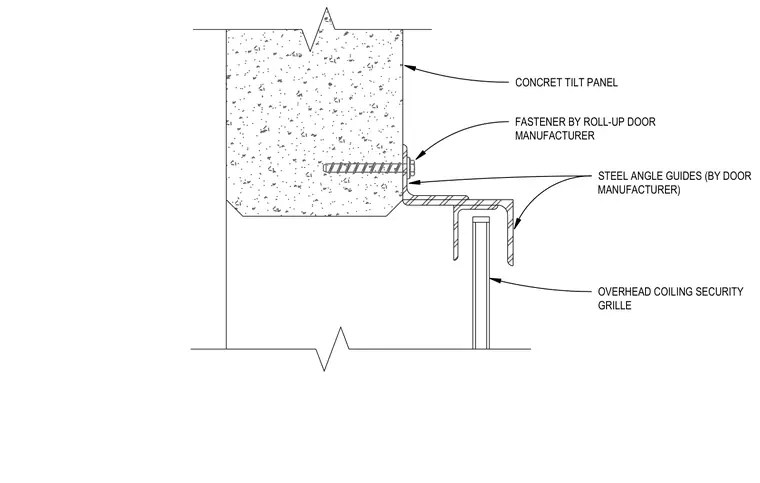

An overhead coiling security grille aligns with a concrete tilt-up panel using steel angle guides supplied by the door manufacturer. Fasteners provided by the door manufacturer secure the steel angle guides directly into the concrete tilt panel.
STEEL ANGLE GUIDES (BY DOOR MANUFACTURER) OVERHEAD COILING SECURITY GRILLE FASTENER BY ROLL-UP DOOR MANUFACTURER CONCRET TILT PANEL
