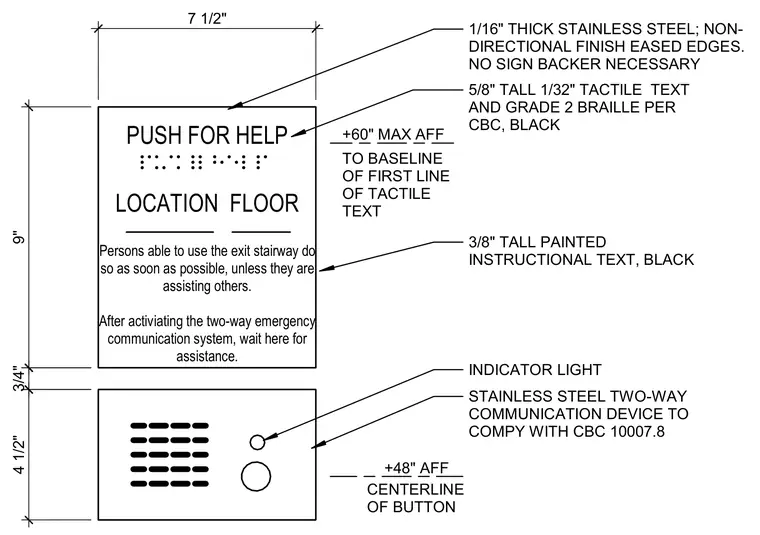

The assembly consists of a one-sixteenth-inch thick stainless steel plate with a non-directional finish and eased edges mounted without a sign backer. The top portion features five-eighth-inch tall tactile text and grade two braille in black along with three-eighth-inch tall painted instructional text. The bottom portion houses a stainless steel two-way communication device with an indicator light and push button. The top of the tactile text is positioned at a maximum sixty inches above finished floor to the baseline of the first line. The centerline of the communication button is positioned at forty-eight inches above finished floor.
1/16" THICK STAINLESS STEEL; NON- DIRECTIONAL FINISH EASED EDGES. NO SIGN BACKER NECESSARY PUSH FOR HELP 9" 7 1/2" LOCATION FLOOR Persons able to use the exit stairway do so as soon as possible, unless they are assisting others. After activiating the two-way emergency communication system, wait here for assistance. 3/4" 4 1/2" 5/8" TALL 1/32" TACTILE TEXT AND GRADE 2 BRAILLE PER CBC, BLACK +60" MAX AFF STAINLESS STEEL TWO-WAY COMMUNICATION DEVICE TO COMPY WITH CBC 10007.8 +48" AFF CENTERLINE OF BUTTON INDICATOR LIGHT TO BASELINE OF FIRST LINE OF TACTILE TEXT 3/8" TALL PAINTED INSTRUCTIONAL TEXT, BLACK
