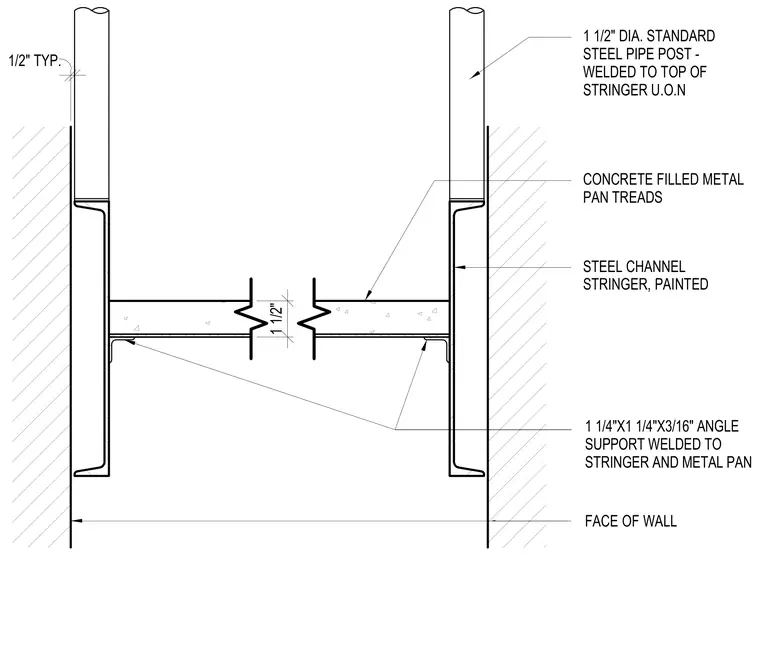

Concrete-filled metal pan treads span between painted steel channel stringers adjacent to the face of the wall with a one-half inch typical clearance. One-and-one-quarter by one-and-one-quarter by three-sixteenths inch angle supports are welded to the stringer and metal pan. One-and-a-half-inch diameter standard steel pipe posts are welded to the top of the stringer unless otherwise noted.
1/2" TYP. 1 1/2" CONCRETE FILLED METAL PAN TREADS STEEL CHANNEL STRINGER, PAINTED 1 1/4"X1 1/4"X3/16" ANGLE SUPPORT WELDED TO STRINGER AND METAL PAN FACE OF WALL 1 1/2" DIA. STANDARD STEEL PIPE POST - WELDED TO TOP OF STRINGER U.O.N
