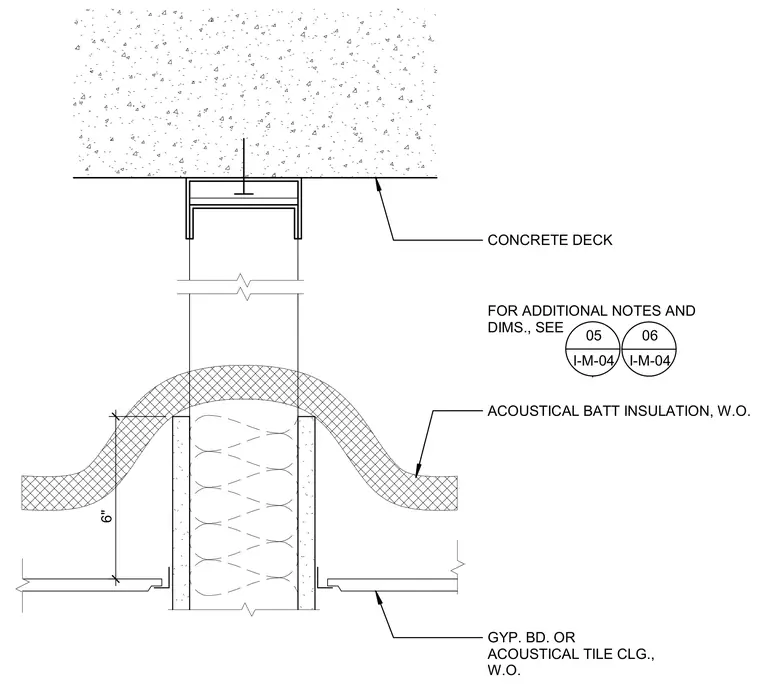

A partition wall extends upward to anchor against an overhead concrete deck. Six inches of acoustical batt insulation drapes over the top of the partition within the ceiling space. The partition framing terminates below a ceiling of gypsum board or acoustical tile. Additional notes and dimensions are cross-referenced to sheets 05 I-M-04 and 06 I-M-04.
GYP. BD. OR ACOUSTICAL TILE CLG., W.O. FOR ADDITIONAL NOTES AND DIMS., SEE 05 I-M-04 CONCRETE DECK 6" ACOUSTICAL BATT INSULATION, W.O. 06 I-M-04
