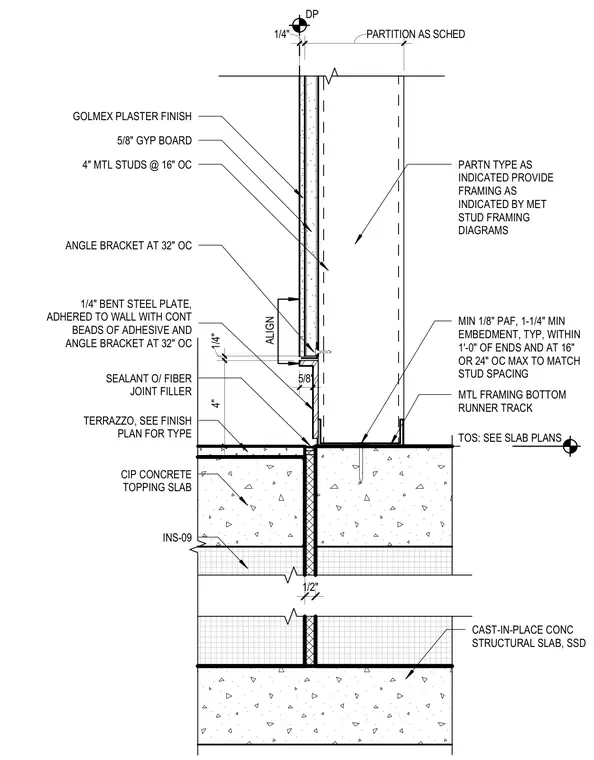

This wall base detail shows a metal stud partition anchoring to a cast-in-place concrete topping slab over a structural slab with insulation below. The four-inch metal studs are spaced at sixteen inches on center with a bottom runner track secured by powder-actuated fasteners having a minimum one-eighth-inch shank and one-and-one-quarter-inch embedment. The wall assembly features five-eighth-inch gypsum board finished with Golmex plaster, transitioning to a quarter-inch bent steel plate adhered with continuous beads of adhesive and angle brackets at thirty-two inches on center. A sealant over fiber joint filler is provided at the base joint above the terrazzo finish specified on the finish plan.
TOS: SEE SLAB PLANS MTL FRAMING BOTTOM RUNNER TRACK CAST-IN-PLACE CONC STRUCTURAL SLAB, SSD TERRAZZO, SEE FINISH PLAN FOR TYPE SEALANT O/ FIBER JOINT FILLER ALIGN 4" 1/4" GOLMEX PLASTER FINISH 5/8" GYP BOARD 1/4" BENT STEEL PLATE, ADHERED TO WALL WITH CONT BEADS OF ADHESIVE AND ANGLE BRACKET AT 32" OC 4" MTL STUDS @ 16" OC CIP CONCRETE TOPPING SLAB INS-09 1/4" PARTITION AS SCHED PARTN TYPE AS INDICATED PROVIDE FRAMING AS INDICATED BY MET STUD FRAMING DIAGRAMS MIN 1/8" PAF, 1-1/4" MIN EMBEDMENT, TYP, WITHIN 1'-0" OF ENDS AND AT 16" OR 24" OC MAX TO MATCH STUD SPACING 5/8" ANGLE BRACKET AT 32" OC DP 1/2"
