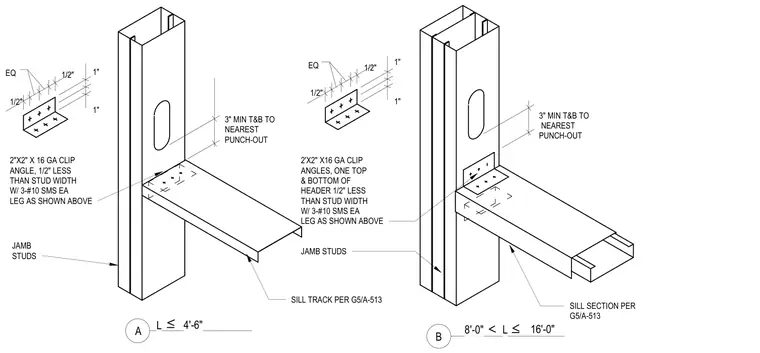

Cold-formed steel sill tracks intersect vertical jamb studs using two-inch by two-inch by sixteen-gauge clip angles positioned at the top and bottom. Each leg of the clip angle fastens with three number ten sheet metal screws. The sill section requires a minimum distance of three inches from the top and bottom to the nearest web punch-out on the jamb stud. Detail A applies to spans less than or equal to four feet six inches, while Detail B applies to spans greater than eight feet and up to sixteen feet.
EQ 1/2" 1/2" 1" 1" 3" MIN T&B TO NEAREST PUNCH-OUT JAMB STUDS 2"X2" X 16 GA CLIP ANGLE, 1/2" LESS THAN STUD WIDTH W/ 3-#10 SMS EA LEG AS SHOWN ABOVE SILL TRACK PER G5/A-513 A L 4'-6" EQ 1/2" 1/2" 1" 1" 3" MIN T&B TO NEAREST PUNCH-OUT B 8'-0" L 16'-0" JAMB STUDS SILL SECTION PER G5/A-513 2'X2" X16 GA CLIP ANGLES, ONE TOP & BOTTOM OF HEADER 1/2" LESS THAN STUD WIDTH W/ 3-#10 SMS EA LEG AS SHOWN ABOVE
