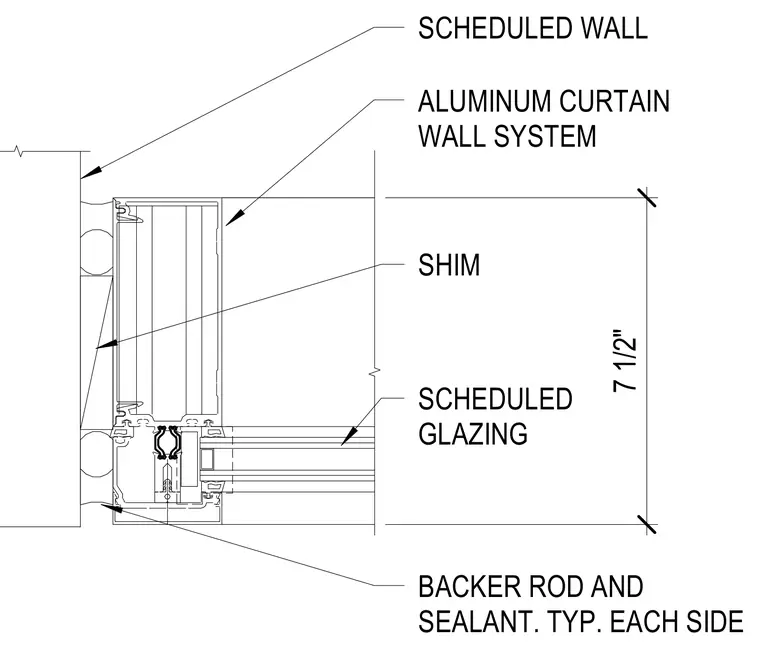

An aluminum curtain wall system interfaces with a scheduled wall at the jamb condition. Shims fill the gap within the seven and one-half inch clearance dimension. Scheduled glazing is installed within the framing. Backer rod and sealant are applied typically on each side of the perimeter joint.
SCHEDULED WALL ALUMINUM CURTAIN WALL SYSTEM SCHEDULED GLAZING BACKER ROD AND SEALANT. TYP. EACH SIDE 7 1/2" SHIM
