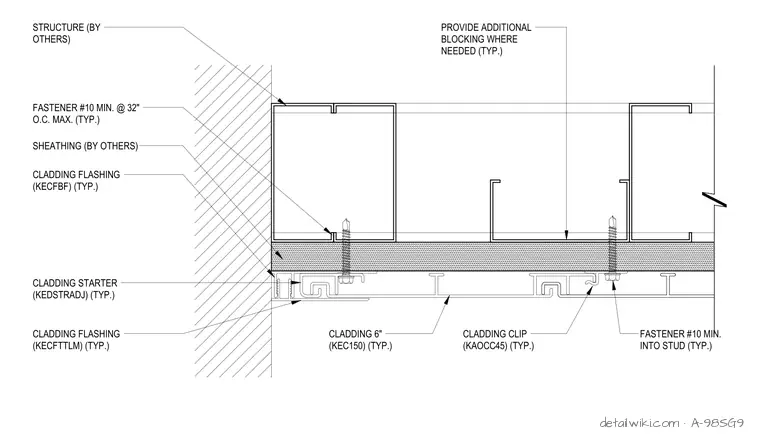

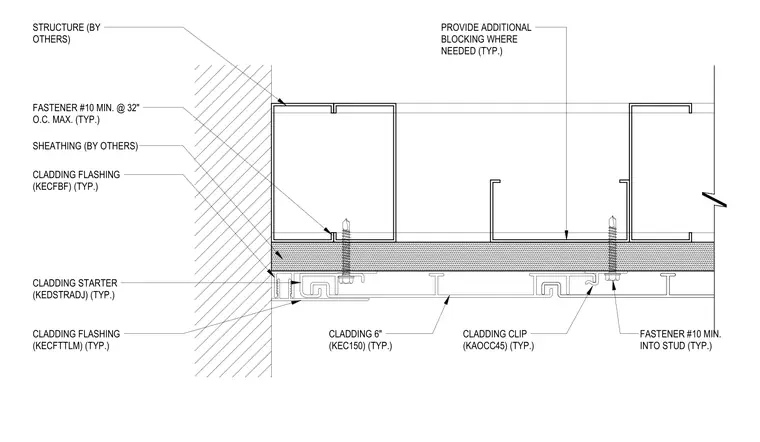

A Knotwood KEDSTRADJ aluminum cladding starter and KECFTTLM cladding flashing install at the wall-to-soffit junction. The starter and flashing secure over sheathing and structure provided by others. 6-inch KEC150 aluminum cladding mounts via KAOCC45 cladding clips, fastened into metal studs with number 10 fasteners. Additional blocking is provided as needed, with primary structure fastened at a maximum of 32 inches on center.
