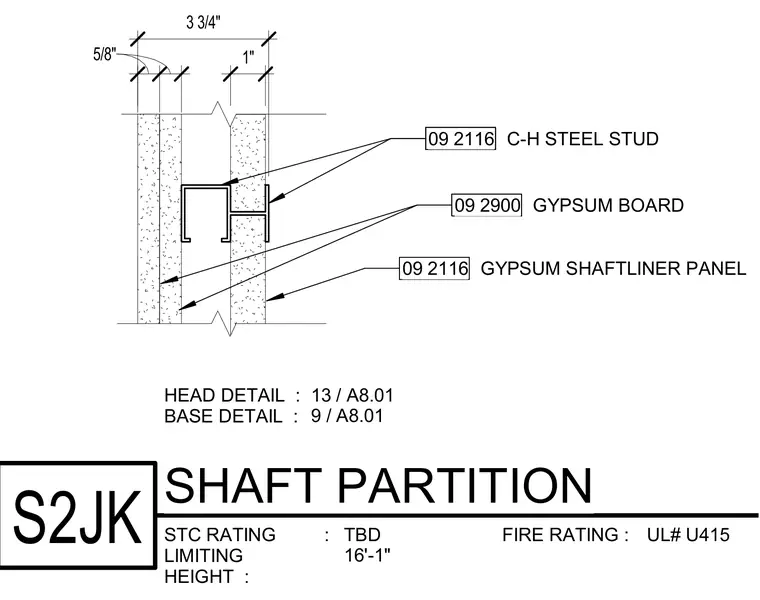

The assembly is framed with three and three-quarter-inch C-H steel studs flanked by five-eighth-inch gypsum board and one-inch gypsum shaftliner panels. The partition achieves a fire rating of UL number U415 with a limiting height of sixteen feet one inch.
09 2116 GYPSUM SHAFTLINER PANEL 5/8" 5/8" STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : S2JK SHAFT PARTITION TBD UL# U415 16'-1" 13 / A8.01 9 / A8.01 09 2900 GYPSUM BOARD 09 2116 C-H STEEL STUD 3 3/4" 09 2116 C-H STEEL STUD 09 2900 GYPSUM BOARD 1"
