Architectural · A-98D62

Clerk Desk Base Construction Detail at Concrete Slab

Materials

Concrete Steel Timber / Wood

Elements

Columns Facades / Cladding Floors / Slabs Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

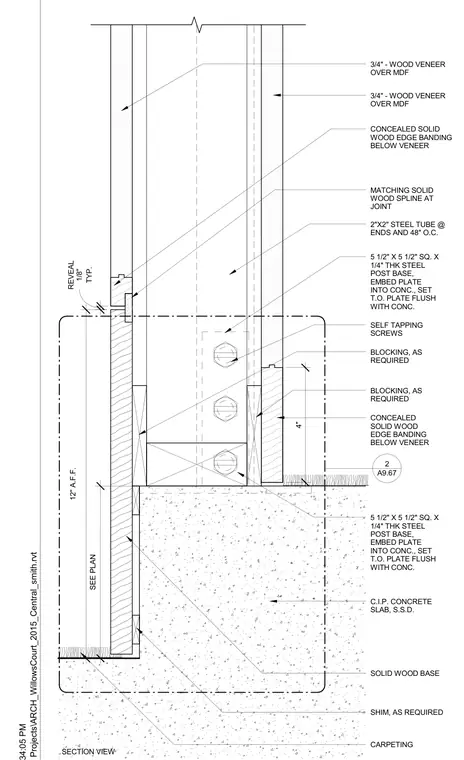

The base assembly of a clerk desk is anchored to a cast-in-place concrete slab. The assembly features a two-inch by two-inch steel tube structural framework spaced at forty-eight inches on center and at the ends, secured with self-tapping screws and supported by a five-and-a-half-inch square by quarter-inch thick steel post base set flush into the concrete slab on an embed plate. The exterior is clad in three-quarter-inch wood veneer over medium-density fiberboard with concealed solid wood edge banding and matching solid wood splines at joints. Additional wood blocking and shims are provided as required. A solid wood base is positioned at the bottom adjacent to finished carpeting, incorporating a typical one-eighth-inch reveal.
