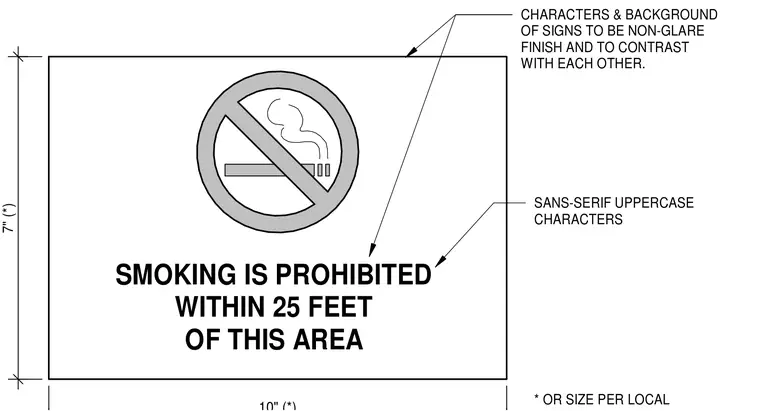

Regulatory wall sign layout specifying a non-glare finish for characters and background to ensure contrast. The text consists of sans-serif uppercase characters reading 'SMOKING IS PROHIBITED WITHIN 25 FEET OF THIS AREA' with sizing per local codes. The overall sign dimensions are 7 inches by 10 inches with conditional asterisks for sizing adjustments.
7" (*) CHARACTERS & BACKGROUND OF SIGNS TO BE NON-GLARE FINISH AND TO CONTRAST WITH EACH OTHER. SMOKING IS PROHIBITED WITHIN 25 FEET OF THIS AREA SANS-SERIF UPPERCASE CHARACTERS * OR SIZE PER LOCAL
