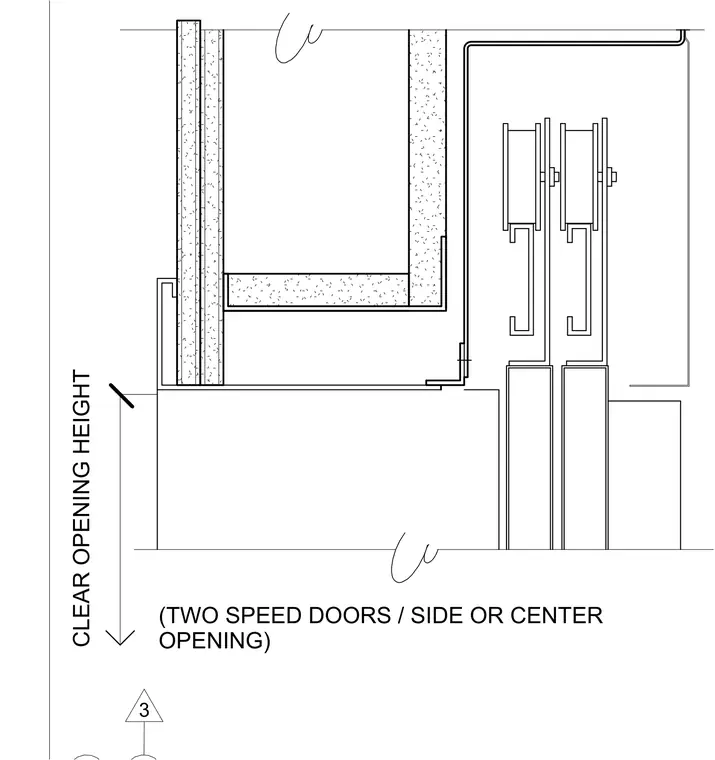

A vertical section details the elevator head jamb assembly above the door opening for two-speed, side-opening, or center-opening doors. Upper door tracks and carriage mechanisms are housed within the shaft wall framing. Gypsum board finishes encapsulate the surrounding structural header and framing members at the clear opening height.
