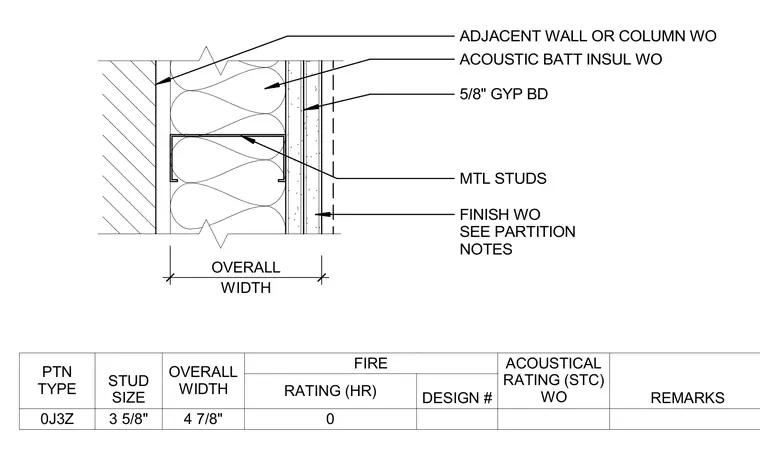

An acoustic furred wall assembly featuring metal studs installed adjacent to an existing wall or column. The cavity is filled with acoustic batt insulation to improve sound attenuation. A single layer of five-eighths inch gypsum board is fastened to the interior face, finished per partition notes. The schedule designates partition type 0J3Z with a three and five-eighths inch stud size and an overall width of four and seven-eighths inches.
ADJACENT WALL OR COLUMN WO WIDTH OVERALL 5/8" GYP BD MTL STUDS ACOUSTIC BATT INSUL WO FINISH WO SEE PARTITION NOTES PTN TYPE STUD SIZE OVERALL WIDTH FIRE ACOUSTICAL RATING (STC) WO REMARKS RATING (HR) DESIGN # 0J3Z 3 5/8" 4 7/8" 0
