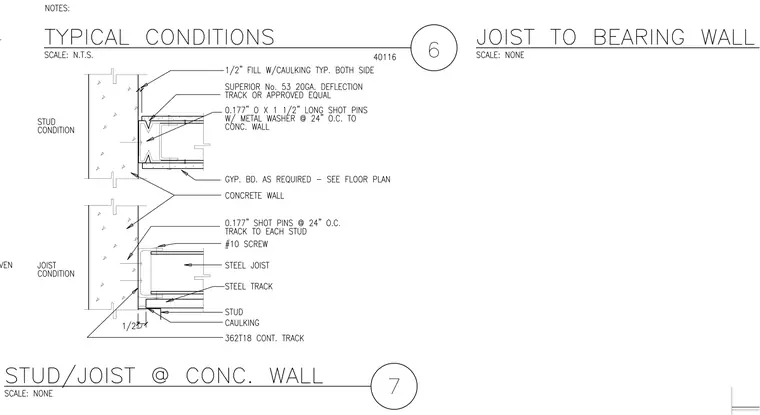

The stud condition detail shows a 20-gauge deflection track secured to a concrete wall using 0.177-inch by 1-1/2-inch long shot pins with metal washers spaced at 24 inches on center. A 1/2-inch fill with caulking is applied to both sides of the track assembly, and gypsum board is installed as required per the floor plan. The joist condition detail features a continuous steel track anchored to the concrete wall with 0.177-inch shot pins at 24 inches on center, connecting to each stud. A steel joist bears within a steel track, fastened with number 10 screws and a 362T18 continuous track at the base with caulking.
