Architectural · A-97Q3B

Window Wall Fixed Head with Roller Shade Pocket and Stucco Soffit

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Beams Walls Windows Curtain Walls Ceilings

Connections

Welded Connection Timber / Mass-Timber Connection

About this detail

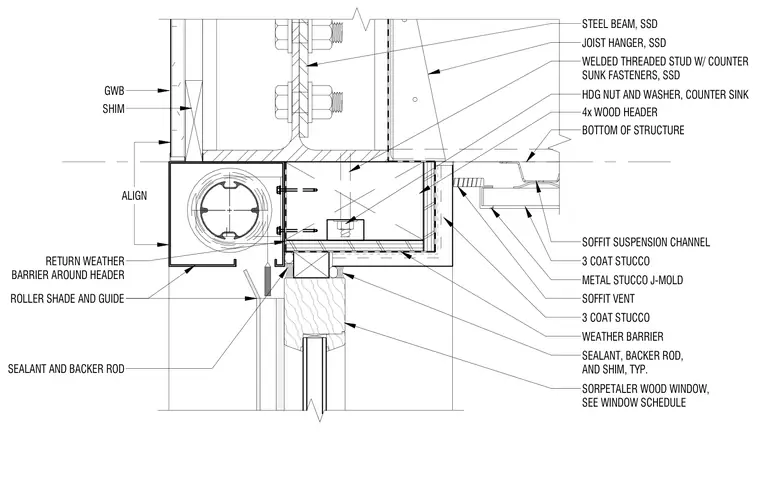

This window head detail shows a Sorpetaler wood window positioned beneath a steel structural beam and suspended soffit system. A 4x wood header is secured to the bottom of the structure using welded threaded studs with hot-dip galvanized nuts and washers, featuring a countersunk fastener detail. A roller shade and guide assembly is integrated adjacent to the wood header, enclosed by a metal framing pocket wrapped in a weather barrier returned around the header. The exterior finish consists of a three-coat stucco system applied over a weather barrier, terminated with a metal stucco J-mold and a soffit vent, with a perimeter joint sealed using sealant and backer rod. Interior gypsum wallboard is installed with shims against the framing.
