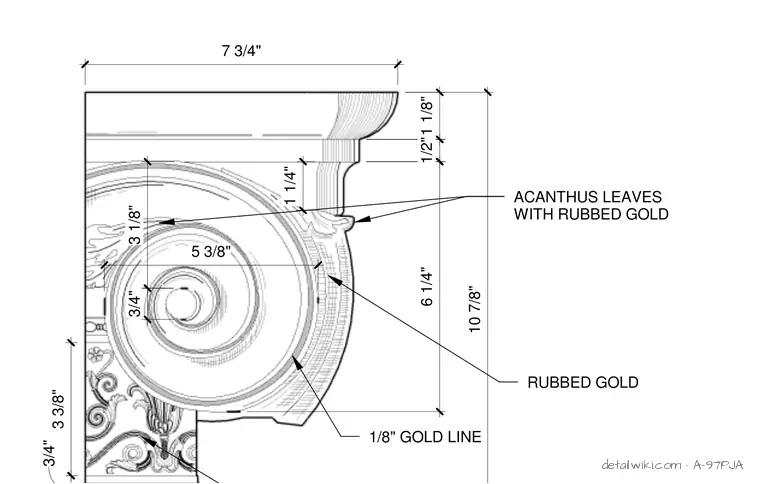

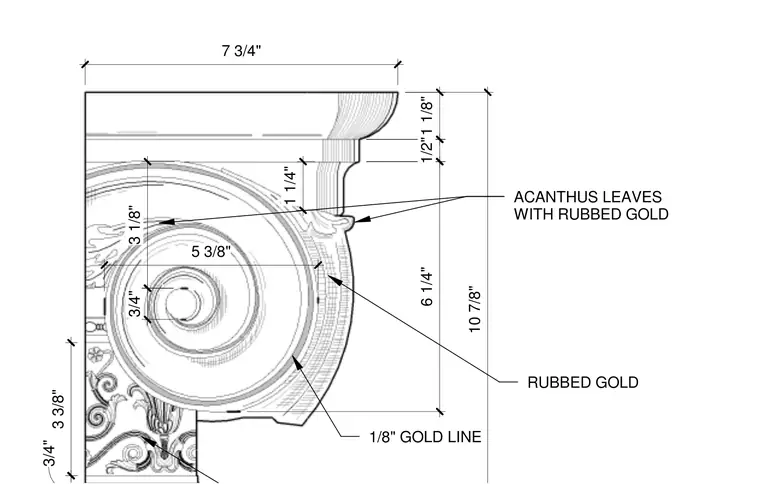

The profile and ornamentation of a classical column capital are detailed with specified dimensions and decorative finishes. Molded profiles measure 7-3/4 inches wide at the top and 10-7/8 inches in total height, with detailed vertical and horizontal dimension strings locating the volute scrolls and reveals. Surface decoration callouts indicate acanthus leaves finished with rubbed gold, an 1/8-inch gold line accent, and rubbed gold highlights throughout the carved elements.
10 7/8" 6 1/4" 5 3/8" 1 1/8" 1/2" 3/4" ACANTHUS LEAVES WITH RUBBED GOLD 3 1/8" 7 3/4" 3/4" 3 3/8" 1 1/4" 1/8" GOLD LINE RUBBED GOLD
