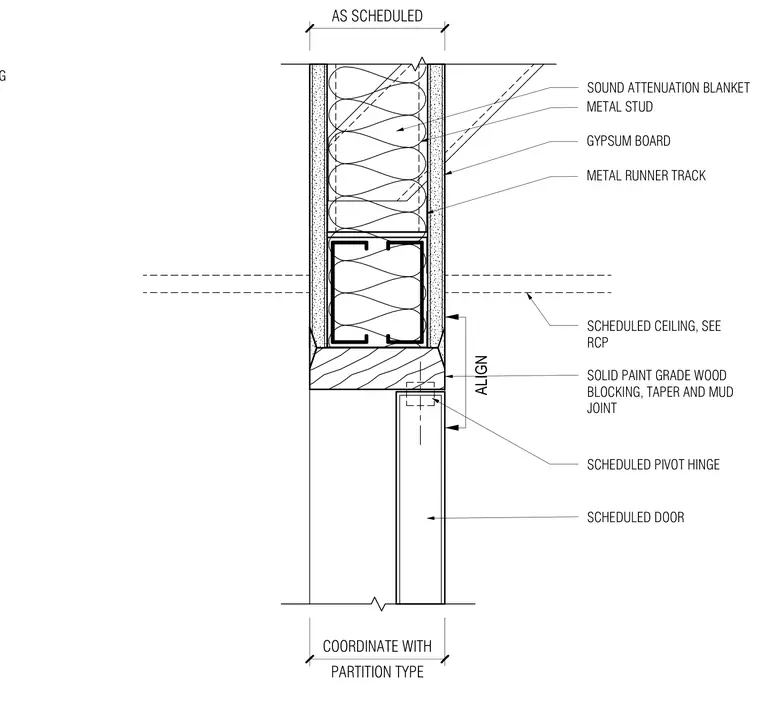

This architectural detail shows the head condition of a frameless pivot door integrated into a metal stud partition. The assembly is framed with metal studs, runner tracks, and solid paint-grade wood blocking to support the pivot hinge. Gypsum board finishes are tapered and mud-jointed flush with the frame, incorporating a sound attenuation blanket within the wall cavity and diagonal bracing for structural alignment. The scheduled ceiling aligns with the top of the door frame as coordinated with the reflected ceiling plan.
AS SCHEDULED GYPSUM BOARD METAL STUD METAL RUNNER TRACK SCHEDULED CEILING, SEE RCP PARTITION TYPE COORDINATE WITH SOUND ATTENUATION BLANKET SOLID PAINT GRADE WOOD BLOCKING, TAPER AND MUD JOINT SCHEDULED PIVOT HINGE SCHEDULED DOOR ALIGN METAL STUD DIAGONAL BRACING
