A-97KTW — Louver In Insul Metal Panel

Architectural · A-97KTW

Louver In Insul Metal Panel

Units: metric
Sheet: A366
Discipline: Architectural

Materials

Aluminum Metal (misc.)Steel

Elements

Facades / Cladding Roof / Floor Openings Walls Waterproofing / Flashing

Connections

Welded Connection

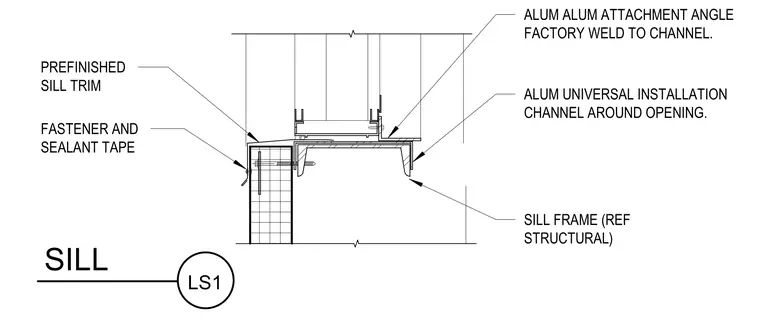

Text on the drawing

ALUM UNIVERSAL INSTALLATION CHANNEL AROUND OPENING. ALUM ALUM ATTACHMENT ANGLE FACTORY WELD TO CHANNEL. SILL FRAME (REF STRUCTURAL) SILL LS1 PREFINISHED SILL TRIM FASTENER AND SEALANT TAPE

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
