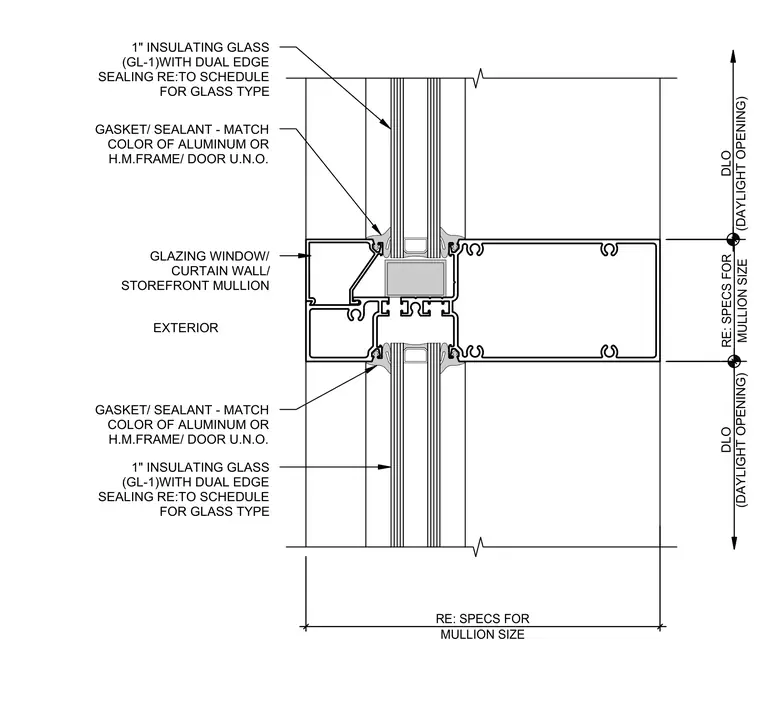

An extruded aluminum horizontal storefront mullion receives one-inch insulating glass units with dual edge sealing at the exterior and interior faces. Glazing gaskets and sealant match the color of the aluminum framing or hollow metal frame and door unless noted otherwise. Glass types are sized according to the project glazing schedule. Mullion dimensions and structural sizing follow the specifications.
EXTERIOR DLO (DAYLIGHT OPENING) DLO (DAYLIGHT OPENING) 1" INSULATING GLASS (GL-1)WITH DUAL EDGE SEALING RE:TO SCHEDULE FOR GLASS TYPE GLAZING WINDOW/ CURTAIN WALL/ STOREFRONT MULLION 1" INSULATING GLASS (GL-1)WITH DUAL EDGE SEALING RE:TO SCHEDULE FOR GLASS TYPE GASKET/ SEALANT - MATCH COLOR OF ALUMINUM OR H.M.FRAME/ DOOR U.N.O. GASKET/ SEALANT - MATCH COLOR OF ALUMINUM OR H.M.FRAME/ DOOR U.N.O. RE: SPECS FOR MULLION SIZE RE: SPECS FOR MULLION SIZE
