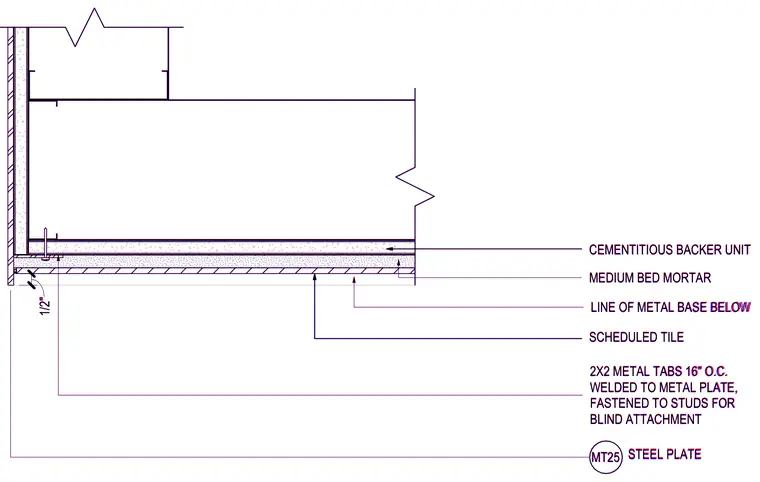

This plan detail shows a tile finish installed over a one-half inch cementitious backer unit set in medium bed mortar. Two-by-two inch metal tabs are spaced at sixteen inches on center and welded to a metal plate, then fastened to studs for blind attachment. An MT25 steel plate provides backing at the portal transition.
LINE OF METAL BASE BELOW 2X2 METAL TABS 16" O.C. WELDED TO METAL PLATE, FASTENED TO STUDS FOR BLIND ATTACHMENT SCHEDULED TILE MEDIUM BED MORTAR 1/2" CEMENTITIOUS BACKER UNIT MT25 STEEL PLATE LINE OF METAL BASE BELOW 2X2 METAL TABS 16" O.C. WELDED TO METAL PLATE, FASTENED TO STUDS FOR BLIND ATTACHMENT SCHEDULED TILE MEDIUM BED MORTAR 1/2" CEMENTITIOUS BACKER UNIT MT25 STEEL PLATE
