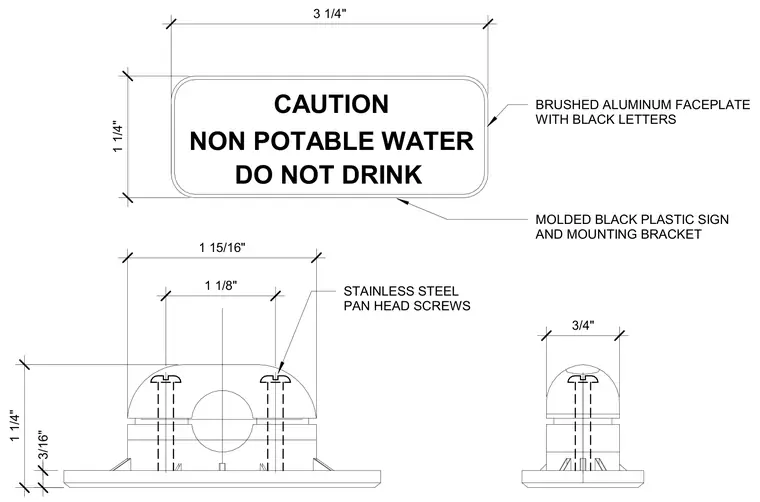

The assembly consists of a molded black plastic sign and mounting bracket fastened with stainless steel pan head screws. A brushed aluminum faceplate with black letters reads CAUTION NON POTABLE WATER DO NOT DRINK. Overall dimensions measure 3 1/4 inches wide by 1 1/4 inches high, with a bracket depth of 3/4 inches and a base mounting height of 3/16 inches.
DO NOT DRINK CAUTION BRUSHED ALUMINUM FACEPLATE WITH BLACK LETTERS NON POTABLE WATER 3 1/4" 1 1/4" 1 1/8" 1 15/16" STAINLESS STEEL PAN HEAD SCREWS 3/16" 1 1/4" 3/4" MOLDED BLACK PLASTIC SIGN AND MOUNTING BRACKET
